Single-screw vented extruder | 300-3,000 kg/h | 0.5-6.0 mm | Self-developed screw/die/roller
Complete production demonstration during FAT at Jwell’s Changzhou manufacturing plant. Watch the full process from raw material feeding through finished sheet winding.

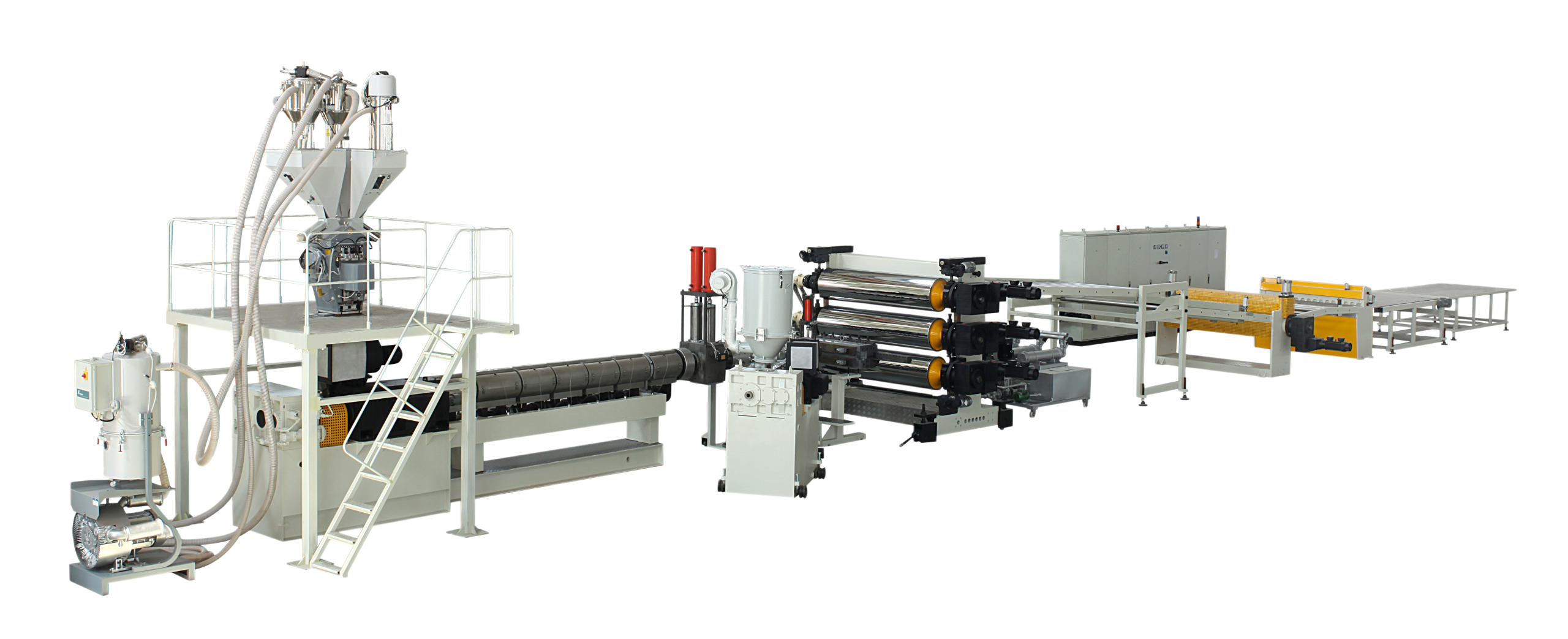

The ABS Sheet Extrusion Line is part of JWELL’s complete extrusion portfolio. Customers evaluating this ABS Sheet Extrusion Line also frequently request our PS HIPS GPPS Sheet Extrusion Line | Jwell Machinery and PC Sheet Extrusion Line | Solid Polycarbonate 1-12mm | Jwell, which share the same proven screw, die and control platforms. For layout drawings, pricing and lead times, contact JWELL Machinery directly.
| # | Item | Key Point |
| 1 | 🌀 **90% Premium Market Share** in China’s high-end extrusion plate sector | |
| 2 | ⚡ **300+ Refrigerator Lines** delivered to Haier, Midea, Beko, Samsung, LG, Whirlpool, Electrolux | |
| 3 | 🎯 **3 Core Self-Developed Technologies**: screw & barrel, T-die, roller | in-house machining |
| 4 | 🔄 **1,000-3,000 kg/h Output** | industry-leading throughput for refrigerator sheet |
| 5 | 🔧 **Full Automation** | auto-unpacking, weighing, thickness, width, stacking |
| 6 | ✅ **Multi-Layer Coextrusion** | ABS/PMMA, ABS/ASA for UV-resistant structures |
| 7 | ♻️ **Haier Partner Since 2003** | 20+ years continuous cooperation, 55+ lines globally |
| 8 | 🌍 **CE & UL Certified** | compliant with international machinery standards |
Jwell is one of the few extrusion line manufacturers globally that designs and manufactures all three core components — screw & barrel, T-die, and polishing roller — in its own facilities. This vertical integration eliminates the dependency on third-party component suppliers that most extrusion line assemblers face, and it directly translates into three customer benefits:

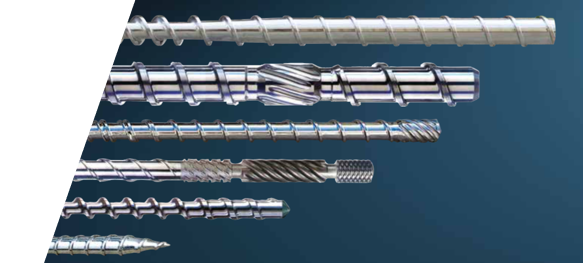

Screw & Barrel: Manufactured in Jwell’s Zhoushan screw production base using nitrided steel with 950 HV surface hardness for the screw, and bimetallic Xaloy X-800 or equivalent alloy liners with 58-62 HRC for the barrel. The ABS-specific screw geometry features a carefully designed barrier flight with a 2.5:1 compression ratio and a 12 L/D gradual compression section that melts the SAN matrix while dispersing the polybutadiene rubber phase at controlled shear rates below 200 s⁻¹ — preserving impact strength that single-screw designs from component suppliers often degrade by 30-50%.
T-Die: Flexible-lip coat-hanger die manufactured in Jwell’s Changzhou die workshop, chrome-plated flow surfaces with mirror-finish polishing. The automatic die option uses individually controlled thermal bolts that respond to online thickness gauge feedback for closed-loop profile control — each bolt adjusts the die lip opening in real time based on measured sheet thickness at that position across the web.
Polishing Roller: 400 mm diameter rollers manufactured in Jwell’s roller workshop, chrome-plated base accepting interchangeable outer sleeves with surface finishes from Ra 0.025 μm (optical mirror) to custom-tooled embossing patterns. Temperature uniformity of ±1°C across the full face width, maintained by a closed-loop pressurized water circuit with independent roll temperature control.
配图建议: Jwell 工厂加工螺杆/模头/辊筒的近景照片组合（可从 PDF 中截图或从公司资料获取）
Jwell’s ABS/HIPS refrigerator sheet line achieves a level of automation that reduces manual operation to supervisory oversight only. The automation chain covers the complete production sequence:
1. Automatic Unpacking & Material Loading: Raw material bags are automatically opened and conveyed to large storage silos (capacity matched to line throughput), with long-distance pneumatic conveying to the extruder hopper. This eliminates manual bag handling for lines consuming 2-3 tons of resin per hour.
2. Automatic Weighing & Blending: A gravimetric dosing system with automatic metal separation measures virgin ABS, HIPS, color masterbatch, and regrind in precise ratios (±0.5% batch accuracy), feeding the blend directly to the extruder throat. Recipe storage in the PLC enables one-touch changeover between different sheet formulations.
3. Automatic Thickness Control: An online thickness gauge (beta or X-ray) continuously measures the sheet profile across the web width, sending feedback signals to the automatic T-die’s individual thermal bolts. Each bolt adjusts the die lip opening to correct local thickness deviations in real time. Simultaneously, the servo-adjusted roll gap maintains overall sheet gauge with 0.01 mm precision.
4. Automatic Width Control — Edgeless Design: The line’s edgeless design eliminates the need for edge trimming, reducing material waste to near zero. Width adjustment is automated through the die width adjustment mechanism, synchronized with downstream equipment.
5. Automatic Stacking: Finished sheets are automatically counted, stacked to preset quantities, and conveyed to the packing station — eliminating the labor-intensive manual sheet handling that dominates conventional sheet extrusion operations.
This automation architecture aligns with Jwell’s Industry 4.0 initiative, enabling bus communication with factory MES/ERP systems for production scheduling, quality data logging, and OEE (Overall Equipment Effectiveness) tracking.
配图建议: 自动化各环节的照片组合（自动称重、自动测厚、自动堆垛 — 可从 PDF 中引用）

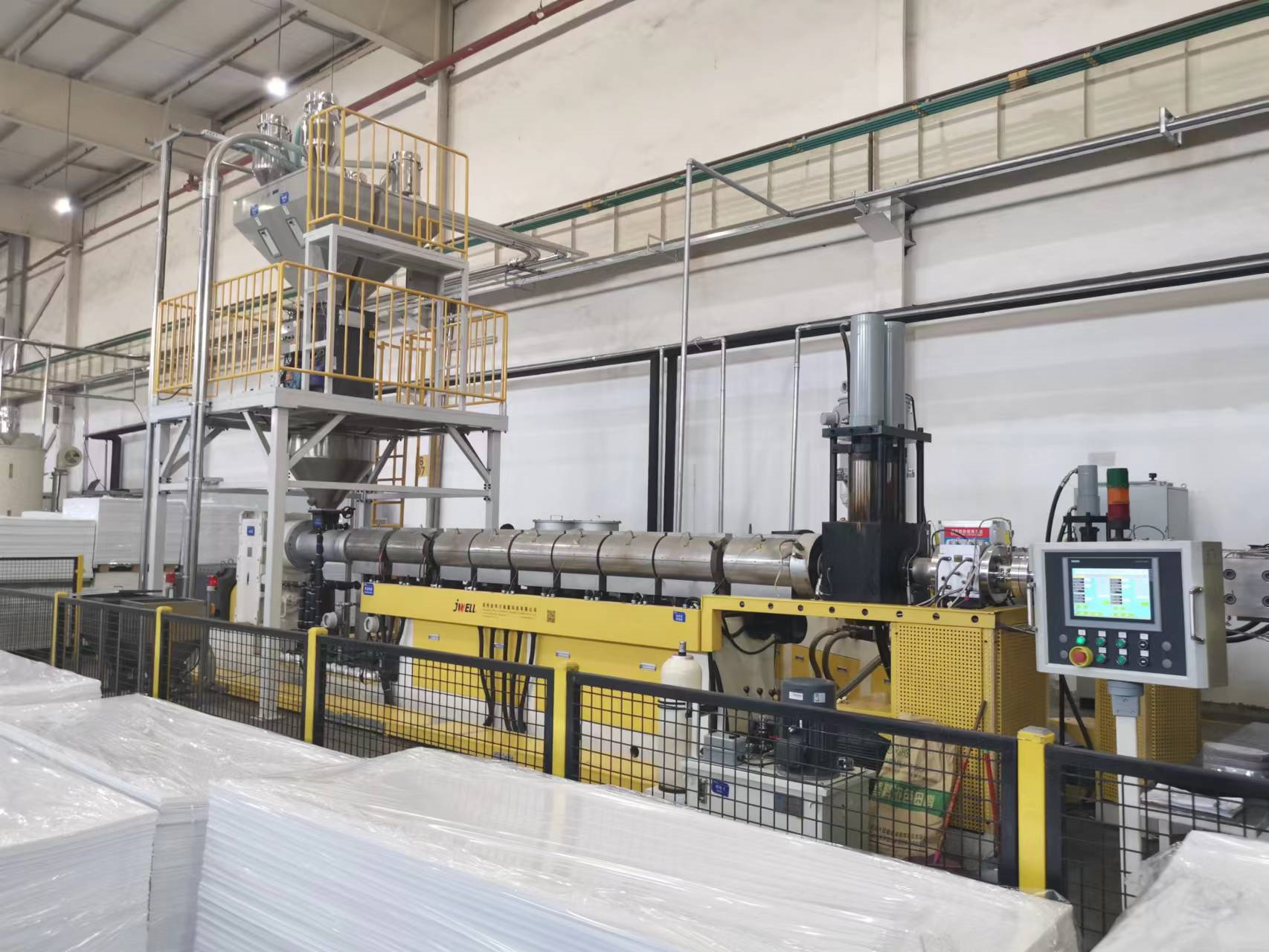

For refrigerator and appliance manufacturers consuming sheet by the ton per hour, Jwell offers a dedicated high-output configuration delivering 1,000-3,000 kg/h — throughput levels that place it among the highest-capacity ABS sheet extrusion systems globally. This configuration is purpose-built for the appliance industry’s production economics, where sheet cost per kilogram is the primary competitive metric and every percentage point of material utilization impacts the business case for in-house sheet production versus external purchase.
The high-output architecture scales the single-screw extruder to large diameters (120-200 mm depending on target output), paired with proportionally sized downstream equipment: wider die (up to 2,200 mm), larger-diameter polishing rolls, extended cooling sections, and automated stacking systems handling sheet dimensions up to 2,000 × 1,200 mm at production speeds. The extruder’s 33:1 L/D ratio and vented barrel design enable stable melt pumping at these throughputs without the melt fracture or surging issues that limit conventional extrusion lines above 800 kg/h.
This configuration has been validated across over 300 installations in refrigerator factories worldwide, with documented performance at Haier’s Hefei facility (16 lines), Midea’s Hefei facility (15 lines across经开区, 冷柜, and 零部件 divisions), and numerous other appliance manufacturing sites.

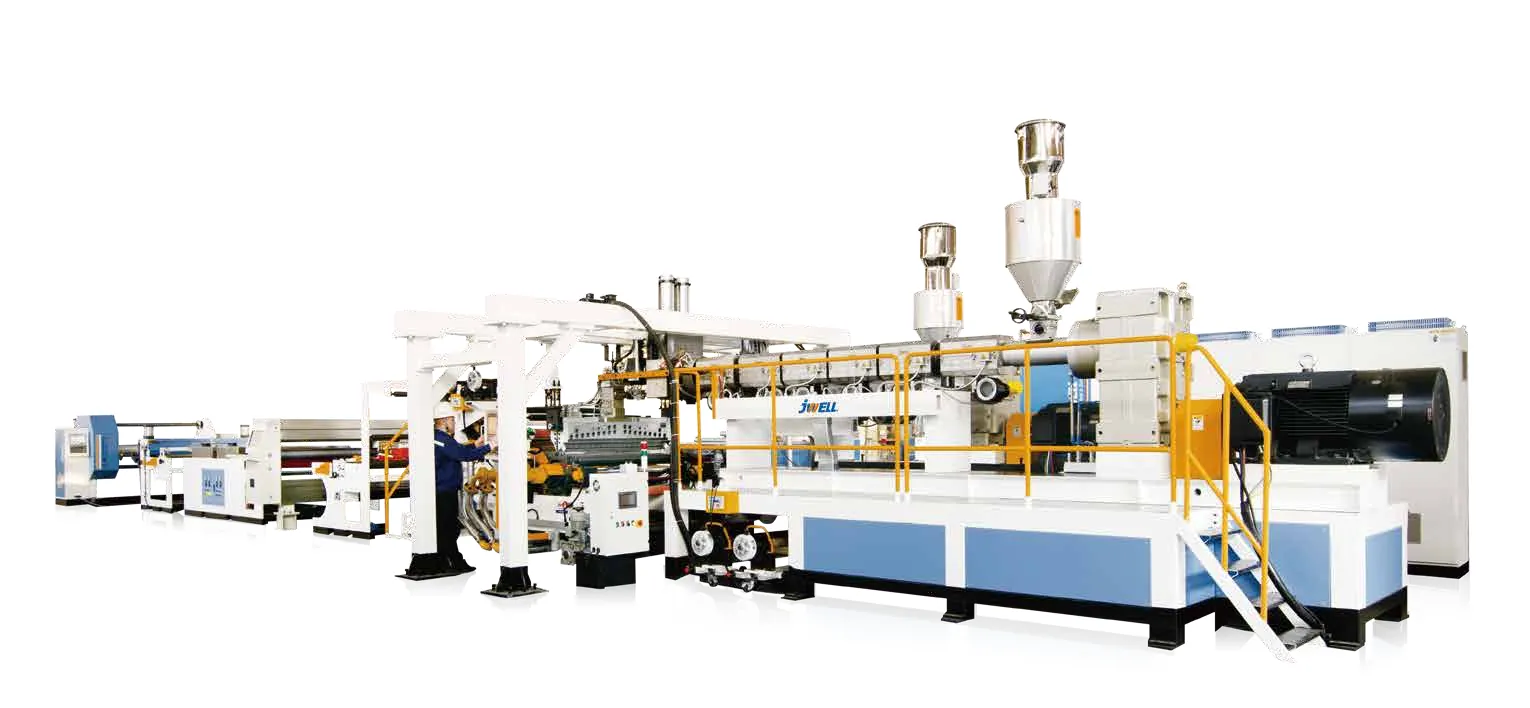

配图: refrigerator-sheet-line.webp — 冰箱板产线主图
ABS sheet applications require radically different surface finishes, and Jwell’s roll stack accommodates all of them through a wide temperature operating range (40-120°C) and interchangeable roll surface sleeves. Automotive interior sheet needs a fine grain texture that hides fingerprints and resists scratching. Luggage sheet requires a glossy, scratch-resistant surface that accepts screen printing. Refrigerator liner sheet needs a smooth, easy-clean glossy finish.
The three 400 mm diameter chrome-plated polishing rolls accept quick-change outer sleeves with surface finishes spanning from Ra 0.025 μm optical mirror to custom-tooled embossing patterns matching automotive OEM grain specifications. Roll temperature uniformity of ±1°C across the full face width — maintained by individual closed-loop pressurized water circuits — eliminates the gloss variation bands that appear as visible stripes on textured ABS sheet when roll temperature is non-uniform, a quality defect that typically results in sheet rejection by automotive and appliance customers.
For converters switching between grain patterns or between glossy and textured surfaces, the sleeve changeover takes approximately 2-3 hours, with calibrated roll gap and temperature parameters stored in the PLC for each surface finish recipe.
配图建议: 三辊压光段近景，展示不同表面纹理效果对比
| Parameter | Specification |
| Available Configurations | Standard ABS line (300-600 kg/h) / Refrigerator-grade line (1,000-3,000 kg/h) |
| Screw Diameter Options | 90 mm / 105 mm / 120 mm / 150 mm / 200 mm |
| Output Range (configuration dependent) | 300 – 3,000 kg/h |
| Parameter | Specification |
| Extruder Type | Single-screw, vented |
| L/D Ratio | 33:1 |
| Screw Compression Ratio | 2.5:1 (ABS-optimized barrier flight design) |
| Screw Material | Nitrided steel, 950 HV surface hardness |
| Barrel Material | Bimetallic, Xaloy X-800 or equivalent, 58-62 HRC |
| Barrel Heating Zones | Multi-zone, independent PID (number model-dependent) |
| Heating Type | Ceramic band heaters |
| Drive Motor | WEG AC (power model-dependent) |
| Inverter | ABB ACS880 series |
| Screen Changer | Hydraulic, continuous operation |
| Parameter | Specification |
| Sheet Thickness Range | 0.5 – 6.0 mm |
| Sheet Width | 800 – 1,500 mm (standard) / up to 2,200 mm (refrigerator config) |
| Thickness Tolerance | ±1.5% |
| Materials | Standard ABS, heat-resistant ABS (105°C), FR ABS (UL 94 V-0), ABS/PMMA, ABS/ASA, HIPS |
| Parameter | Specification |
| Configuration | 3-roll vertical |
| Roll Diameter | 400 mm each |
| Roll Temperature Range | 40 – 120°C |
| Temperature Uniformity | ±1°C across roll face |
| Surface Finish Options | Ra 0.025 μm mirror to custom embossing patterns |
| Roll Sleeve Changeover | Interchangeable, 2-3 hours |
| Parameter | Specification |
| Number of Extruders | 2 or 3 |
| Layer Structures | ABA, ABC, ABCBA |
| Cap Layer Thickness | 50 – 150 μm (PMMA or ASA) |
| Die Type | Multi-manifold or feedblock |
| Parameter | Specification |
| Material Handling | Automatic unpacking + pneumatic conveying |
| Blending | Gravimetric dosing, ±0.5% accuracy, metal separation |
| Thickness Control | Online gauge + automatic T-die + servo roll gap |
| Width Control | Automatic, edgeless design |
| Stacking | Automatic counting + stacking |
| Industry 4.0 | Bus communication, MES/ERP integration |
| Parameter | Specification |
| Max Line Speed | 20 m/min (at 1 mm) / 3 m/min (at 6 mm) |
| Total Installed Power | 250 – 550 kW (configuration dependent) |
| Control System | Siemens S7-1500 PLC + 15″ HMI |
| Recipe Storage | Configurable slots, time-stamped parameter logging |
| Process Parameters Logged | 50+ at 10-second intervals |
| Parameter | Specification |
| Certifications | CE, UL, ISO 9001 |
| Available as | Complete line turnkey solution |
| After-Sales | Global engineer certification system, 48-hour spare parts dispatch |
| 文件名 | Alt Text / 场景 |
| ABS Sheet extrusio line SAT Picture.jpg | Jwell ABS sheet extrusion line — Site Acceptance Test at Haier Indonesia / SAT验收 |
| ABS Sheet extrusio line SAT.jpg | ABS sheet line SAT — quality sheet output verification at Haier facility / SAT产片 |
| ABS Sheet extrusio line manipulator.jpg | Automated sheet handling robot at Haier Indonesia ABS sheet line / 机械手 |
| ABS Sheet extrusio line manufacture.jpg | ABS sheet production in progress at Haier Indonesia manufacturing facility / 生产运行 |

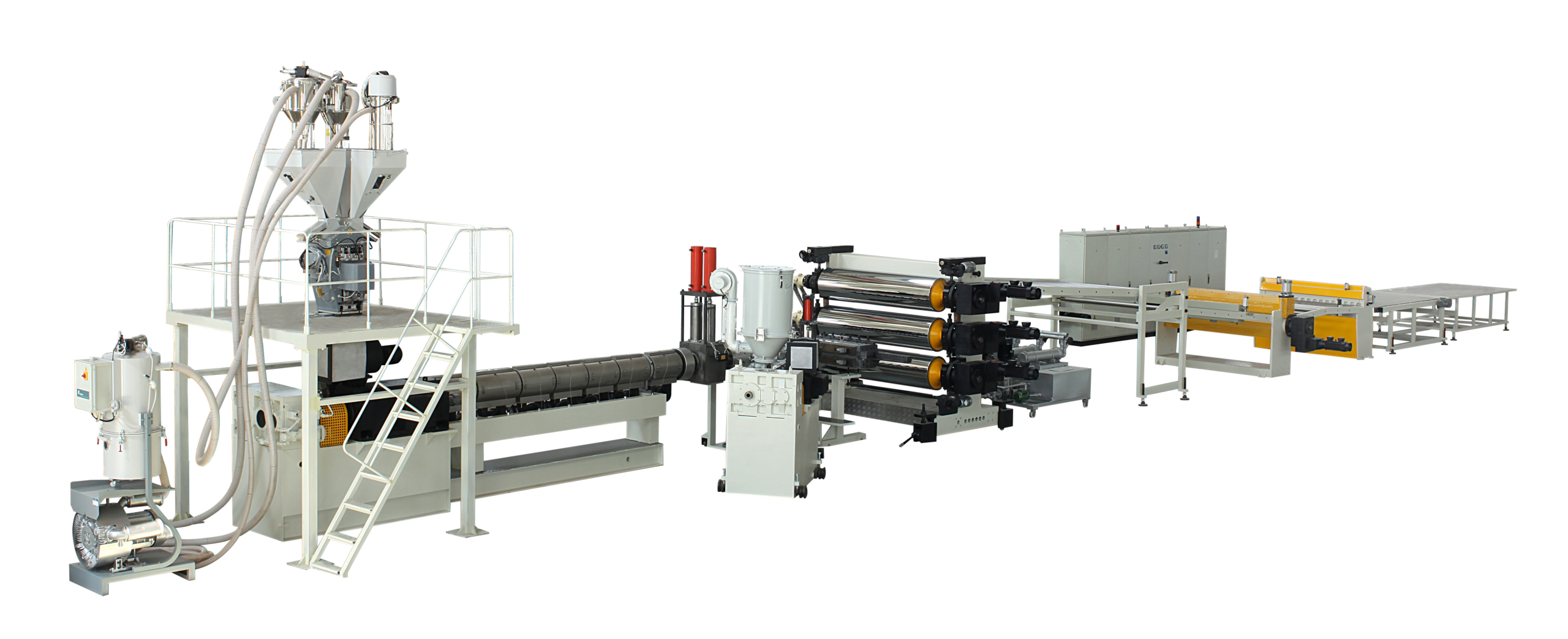

| ABS Sheet extrusio line.jpg | Jwell ABS sheet extrusion line — complete installation at Haier Indonesia / 整线安装 |
| Jwell ABS Sheet extrusio line.jpg | Jwell ABS sheet extrusion line — overview at Haier Indonesia factory / 工厂全景 |
| 数据 | 数值 / 说明 |
| Premium Market Share (China) | 90% / High-end extrusion plate equipment |
| Refrigerator Lines Delivered | 300+ / To Haier, Midea, Beko, Samsung, LG, Whirlpool, Electrolux |
| Haier Cooperation | 2003 – Present / 20+ years, 55+ lines globally |
| Midea Lines | 39+ / Across China, Thailand, Indonesia, Belarus, Algeria |
| Beko Lines | 5 / Across 5 countries |
| Annual Production Capacity | 3,000+ lines / Across 8 production bases |
| Material | Cost (relative) / Impact Strength / Chemical Resistance / Deep-Draw / Best For |
| ABS | 1.0× (baseline) / Excellent (20-40 kJ/m²) / Good (solvent sensitive) / Excellent / Premium refrigerator liners |
| HIPS | 0.7-0.8× / Moderate (8-12 kJ/m²) / Poor (stress cracking) / Good / Cost-sensitive liners, lower-spec appliances |
| PP (talc-filled) | 0.6-0.7× / Good (at room temp) / Excellent / Moderate / Chemical-resistant liners |
| PC | 1.8-2.0× / Superior (60-80 kJ/m²) / Poor (solvent cracking) / Good / Premium, over-spec for most applications |
| 卡片 | 产品名称 / 链接 / 关系 |
| 1 | PS/HIPS Sheet Extrusion Line / /sheet-extrusion/ps-hips-sheet-extrusion-line/ / 材料相近（同线可切换 HIPS） |
| 2 | PP Sheet Extrusion Line / /sheet-extrusion/pp-sheet-extrusion-line/ / 应用重叠（汽车、包装） |
| 3 | PC Sheet Extrusion Line / /sheet-extrusion/pc-sheet-extrusion-line/ / 同类高端工程塑料应用 |
| # | 字段 / 类型 / 必填 / 说明 |
| 1 | Name / text / ✅ / placeholder: “Your full name” |
| 2 | Email / email / ✅ / placeholder: “your@company.com” |
| 3 | Country / select / ✅ / 200+国家 |
| 4 | Phone / tel / — / 含国际区号 |
| 5 | Company / text / — / placeholder: “Your company name” |
| 6 | Application / select / ✅ / Refrigerator / Automotive / Luggage / Industrial / Multiple / Other |
| 7 | Target Material / select / ✅ / ABS / HIPS / ABS+PMMA / ABS+ASA / Not sure |
| 8 | Required Output (kg/h) / select / ✅ / <500 / 500-1000 / 1000-2000 / 2000-3000 / >3000 / Not sure |
| 9 | Sheet Thickness (mm) / select / — / <1.0 / 1.0-3.0 / 3.0-6.0 / >6.0 |
| 10 | Project Timeline / select / — / Immediate / 1-3 months / 3-6 months / 6-12 months / Information only |
| 11 | Message / textarea / — / placeholder: “Tell us about your production requirements…” |
| — | CAPTCHA / — / ✅ / reCAPTCHA v3 |
| — | Submit / submit / — / “Request Quote & Configuration” |
| # | 检查项 / 状态 |
| 1 | 唯一 H1，含完整产品名 + 核心关键词 / ✅ |
| 2 | H2 技术关键词覆盖: single-screw, coextrusion, refrigerator, automotive, automation / ✅ |
| 3 | 规格表为 HTML <table> 文本 / ✅ |
| 4 | 所有图片有描述性 alt 属性 / ✅ |
| 5 | 面包屑用 Schema BreadcrumbList / ✅ |
| 6 | FAQ 用 Schema FAQPage (6个Q&A) / ✅ |
| 7 | 产品信息用 Schema Product + 详细 Organization / ✅ |
| 8 | 视频 ×2 分别用 Schema VideoObject / ✅ |
| 9 | Canonical 自引用 / ✅ |
| 10 | Title tag 50-60 chars / ✅ |
| 11 | Meta description 含社会证明数据 + 关键词 / ✅ |
| 12 | Open Graph 完整 / ✅ |
| 信号 | 体现方式 |
| Experience | 300+ 产线交付、Haier 20年合作、海尔印尼案例实拍 |
| Expertise | 三大自有核心技术、螺杆/模头/辊筒全自研、ABS 专用螺杆设计 |
| Authoritativeness | 中国塑机协会副会长单位、90% 国内高端市场份额、收购德国考特斯 |
| Trustworthiness | CE + UL + ISO 9001 认证、全球工程师认证体系、8 大生产基地 |
| 检查项 | 目标值 |
| LCP | < 2.5s |
| CLS | < 0.1 |
| INP | < 200ms |
| Mobile-friendly | ✅ |
| 图片格式 | WebP (已满足) |
| 文件夹 | 文件 / 用途 / 状态 |
| 主图/ | abs-sheet-extrusion-line-hero-01.webp / [C] Hero 画廊 — 主图 1 / ✅ |
| 主图/ | refrigerator-sheet-line.webp / [C] Hero 画廊 — 冰箱板产线 / ✅ |
| 主图/ | ABS-sheet-extrusion-line.webp / [C] Hero 画廊 — 主机特写 / ✅ |
| 主图/ | product-hero.webp / [C] Hero 画廊 — 产品特写 / ✅ |
| 详情图/ | abs-sheet-extrusion-line-refrigeration-appliance-components.webp / [H1] 冰箱应用 / ✅ |
| 详情图/ | abs-sheet-extrusion-line-automotive-interior-trim-components.webp / [H2] 汽车应用 / ✅ |
| 详情图/ | abs-sheet-extrusion-line-luggage-and-travel-goods.webp / [H3] 行李箱应用 / ✅ |
| 详情图/ | abs-sheet-extrusion-line-ndustrial-equipment-housings-machine-guards.webp / [H4] 工业设备应用 / ✅ |
| 案例/印尼海尔/ | 6 张现场照片 (JPG, ~300-380KB each) / [I] 案例照片画廊 / ✅ |
| 文件 | 用途 / 状态 |
| 产品视频/Jwell ABS sheet extrusion line FAT.mp4 | [D1] FAT 视频 / ✅ |
| 产品视频/Case study/印尼海尔/Jwell ABS Sheet extrusio line.mp4 (34MB) | [D2] 海尔印尼案例视频 / ✅ |
| 用途 | 建议 / 优先级 |
| F1 三大核心技术配图 | Jwell 工厂加工螺杆/模头/辊筒近景组合 / 高 |
| F2 自动化流程配图 | 自动称重/测厚/堆垛照片 / 高 |
| F4 三辊压光配图 | 压光段近景，不同纹理效果对比 / 中 |
| F5 共挤模头配图 | 共挤模头或多层片材截面图 / 中 |
| F6 螺杆结构图 | ABS 专用螺杆设计标注图 / 中 |
| F7 储料架配图 | 储料架结构 / 低 |
| F8 全球组件配图 | 电控柜 + 品牌 logo 组合 / 低 |
| 视频封面图 ×2 | FAT 视频 + 案例视频 poster 图 / 高 |
| 相关产品卡片图 | PS/PP/PC 缩略图 / 中 |
| 客户 logo 条 | Haier/Midea/Beko/Samsung/LG/Whirlpool 等 logo / 中 |
| 目标页面 | 位置 / 锚文本 |
| PS/HIPS Sheet Line | [L] Related Products / “PS/HIPS Sheet Extrusion Line” |
| PP Sheet Line | [L] Related Products / “PP Sheet Extrusion Line” |
| PC Sheet Line | [L] Related Products / “PC Sheet Extrusion Line” |
| 来源页面 | 链接上下文 |
| Sheet Extrusion Pillar Page | 片材挤出分类页 |
| Refrigerator Manufacturing Solutions | 冰箱制造整体方案页 |
| Automotive Interior Solutions Guide | 汽车内饰解决方案 |
| Heavy-Gauge Sheet Processing Overview | 厚板加工概览 |
| 维度 | PET 线 / ABS 线 |
| Hero 卖点数 | 8 项 / 9 项（增加市场份额 + 客户数据） |
| 标签页 | 4 个 (Features/Specs/Apps/Downloads) / 5 个 (+Case Studies) |
| 功能区块 | 7 个 / 8 个（增加自动化 + 冰箱板高产能 + 市场地位） |
| 视频数 | 1 个 / 2 个 (FAT + 案例) |
| 应用场景数 | 4 个 / 4 个（首项改为冰箱板，体现核心市场） |
| 独特区块 | — / 客户案例区 [I] + 市场地位区 [J] |
| 表单字段 | 8 个 / 11 个（增加 Application + Timeline） |
| E-E-A-T 重心 | 技术功能验证 / 市场地位 + 规模验证 |
| 特色数据 | 400+ 全球安装 / 300+ 冰箱线 + 90% 市场份额 + 海尔20年 |
ABS and HIPS sheet at 2.5-5.0 mm thickness forms refrigerator door liners, freezer compartment panels, and appliance housing components for the global white goods industry. This application is Jwell’s strongest market position — with over 300 lines delivered to the refrigerator industry and an estimated 90% share of China’s high-end extrusion plate equipment market.
Jwell’s refrigerator industry customer list includes:
– Haier Group: 55+ lines across合肥(16), 青岛(15), 胶州(10), 重庆(6), 贵州(3), 佛山(3), 沈阳(1), 大连(1), 武汉(1), plus Romania(2), Russia(2), India Noida(2), India Pune(1), Vietnam(1), Pakistan(1), Indonesia(1), Egypt(1)
– Midea Group: 39+ lines across合肥(15), 荆州(9), 广州(2), 佛山(2), plus Thailand Toshiba(6), Thailand Midea(2), Indonesia(3), Belarus(2), Algeria(1)
– Beko: 5 lines in Thailand, Russia, India, Pakistan, Turkey
– Samsung, LG, Whirlpool, Electrolux: Additional installations
The cooperation with Haier began in 2003 and spans over 20 years, reflecting the equipment reliability and after-sales support consistency that tier-1 appliance manufacturers require from their machinery suppliers.
ABS sheet for refrigeration applications demands chemical resistance to common household cleaners (foaming agents in polyurethane insulation have strong solvent effects), UL 94 HB flammability rating (with FR grades reaching V-0), and deep-draw thermoforming capability at moderate mold temperatures (100-130°C). Jwell lines serving this application typically include the full automation package: automatic material handling, thickness control, and sheet stacking.
ABS sheet at 2.0-4.0 mm thickness is thermoformed into door panel inserts, instrument panel components, center console trim, seat back panels, and interior pillar covers. Heat-resistant ABS grades (service temperature to 105°C) withstand the temperatures reached inside vehicles parked in summer sun without sagging or delamination.
For automotive OEMs, ABS with embossed grain texture delivers paint-free Class A surface quality — saving $2-4/m² in coating cost and the VOC emissions associated with painting processes. Jwell’s roll stack accommodates custom-tooled grain patterns that match OEM specifications for specific vehicle models, with interchangeable sleeves enabling rapid changeover between grain patterns for different production runs.
The consistent gauge profile from Jwell’s thickness automation system ensures uniform part weight in high-speed multi-cavity thermoforming tools producing 500-2,000 parts per shift. The PLC’s parameter logging infrastructure provides the complete production traceability that automotive quality audits require under ISO/TS 16949.
The dedicated ABS/HIPS refrigerator sheet extrusion line delivers 1,000-3,000 kg/h output, scalable through screw diameter (90-200 mm) and downstream equipment sizing. These high-output configurations have been validated across over 300 installations in refrigerator factories operated by Haier, Midea, Beko, Samsung, LG, Whirlpool, and Electrolux.
For converters entering the ABS sheet market or producing lower volumes, Jwell also offers a standard configuration at 300-600 kg/h suitable for automotive, luggage, and industrial sheet applications.
The line produces ABS sheet from 0.5 to 6.0 mm thickness, processing standard ABS, heat-resistant ABS (continuous service temperature to 105°C), flame-retardant ABS (UL 94 V-0 rated), HIPS (high-impact polystyrene), and multi-layer structures including ABS/PMMA and ABS/ASA for UV-resistant cap layers. Material changeover is managed through the Siemens PLC’s recipe storage with calibrated parameters for each material grade.
Jwell’s refrigerator-grade line uses a three-layer thickness automation system:
1. Online thickness gauge (beta or X-ray) continuously measures the sheet profile
2. Automatic T-die with individual thermal bolts adjusts die lip opening at each measurement position
3. Servo-adjusted roll gap maintains overall sheet gauge with 0.01 mm precision
This combined die + roll gap automation maintains thickness tolerance within ±1.5% across the full web width, verified by continuous thickness profiling during FAT.
ABS absorbs 0.3-0.5% moisture from ambient air and requires drying to below 0.05% moisture content before extrusion to prevent surface splay and molecular weight degradation. Jwell recommends a desiccant dryer with honeycomb rotor achieving -40°C dew point, 3-4 hours residence time at 80-90°C. The extruder’s vented barrel (33:1 L/D) with atmospheric vent in the decompression zone provides a secondary moisture removal safeguard. For the 3,000 kg/h refrigerator configuration, a 12,000-liter dryer capacity is recommended.
Yes. Jwell has over 20 years of overseas project experience covering installations in 120+ countries, including high-risk regions. The Global Engineer Certification System authorizes trained engineers worldwide to install, commission, and service Jwell extrusion equipment with full manufacturer warranty coverage. Nearly 50% of Jwell orders are exported.
Critical spare parts (screws, barrels, roll bearings, heater bands, PLC modules) are maintained in Jwell’s Shanghai bonded warehouse for 48-hour international express dispatch. Remote diagnostic support via WeChat/WhatsApp responds within 2 hours during business hours (GMT+8).
Extruder Type: Conical twin-screw, vented; Screw Material: 38CrMoAlA, nitrided, bimetallic optional; Screw Structure: Conical twin, designed for PVC + wood flour + CaCO₃ + foaming agent; L/D Ratio: Optimized for controlled foaming zone
Screw Diameter: Φ 80 mm / Φ 92 mm / Φ 110 mm / Φ 180 mm; Output (24h, SPC): 6-8 T / 12-18 T / 25-32 T / 70-100 T; Line Speed at 4 mm: 0.4-0.6 m/min / 0.8-1.3 m/min / 1.8-2.4 m/min / 5-9 m/min; Screw Material: 38CrMoAlA, nitrided, bimetallic optional / ← Same / ← Same / ← Same
Applicable Material: EVA copolymer (VA content 14-28%), EVA + LDPE blends, EVA + carbon black; Sheet Width: 2,000 – 4,000 mm; Sheet Thickness: 1.0 – 3.0 mm; Production Capacity: 300 – 600 kg/h
🏭
Jwell has manufactured PET sheet extrusion equipment since 2005, accumulating field data from over 400 installed PET lines worldwide. Each new machine generation incorporates refinements validated across hundreds of real production environments — not just lab prototypes.
🔬
Our Changzhou facility operates a full production-scale PET line for customer trials. Bring your raw materials and target specifications — we run your recipe before you commit. The line delivered to your factory is a proven configuration, eliminating startup risk.
🌍
Factory-trained Jwell engineers based in Brazil, Spain, Mexico, and Shanghai travel to customer sites for installation and operator training. Remote diagnostic support via WeChat/WhatsApp responds within 2 hours. Critical spares ship from Shanghai within 48 hours.
Jwell Machinery Co., Ltd sets up in 1997 , we are large manufacturer of plastic extrusion machinery in China, our headoffice was located in Shanghai.
SOLUTIONS
PRODUCTS
CONTACT
Copyright © Jwell Machinery Co., Ltd 2026. All rights reserved. Privacy Policy | Terms & Conditions | Site Map
