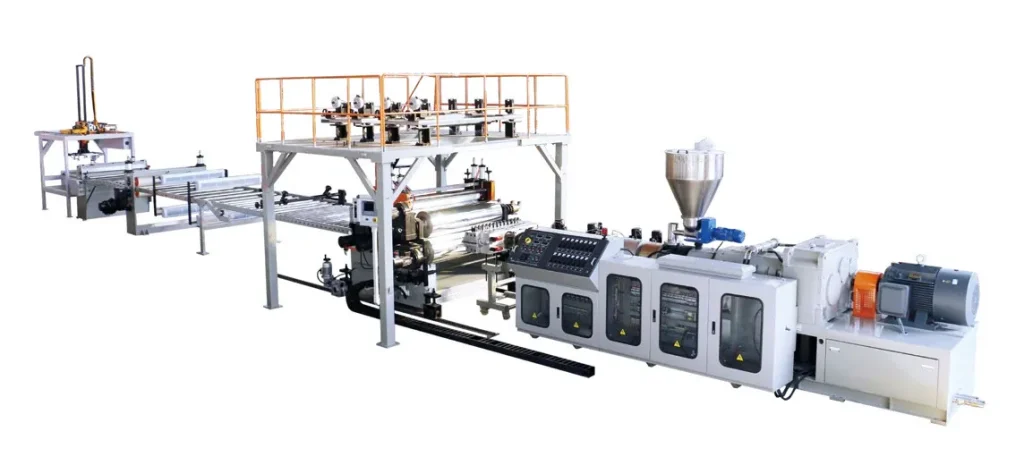

Extruder Type: Conical twin-screw, vented; Screw Material: 38CrMoAlA, nitrided, bimetallic optional; Screw Structure: Conical twin, designed for PVC + wood flour + CaCO₃ + foaming agent; L/D Ratio: Optimized for controlled foaming zone
Screw Diameter: Φ 80 mm / Φ 92 mm / Φ 110 mm / Φ 180 mm; Output (24h, SPC): 6-8 T / 12-18 T / 25-32 T / 70-100 T; Line Speed at 4 mm: 0.4-0.6 m/min / 0.8-1.3 m/min / 1.8-2.4 m/min / 5-9 m/min; Screw Material: 38CrMoAlA, nitrided, bimetallic optional / ← Same / ← Same / ← Same
Applicable Material: EVA copolymer (VA content 14-28%), EVA + LDPE blends, EVA + carbon black; Sheet Width: 2,000 – 4,000 mm; Sheet Thickness: 1.0 – 3.0 mm; Production Capacity: 300 – 600 kg/h
参数组: 参数 / 规格值; Model Options: JWELL-TPU-LAM-150 / 150 kg/h max output (polyester TPU); : JWELL-TPU-LAM-250 / 250 kg/h max output; : JWELL-TPU-LAM-400 / 400 kg/h max output

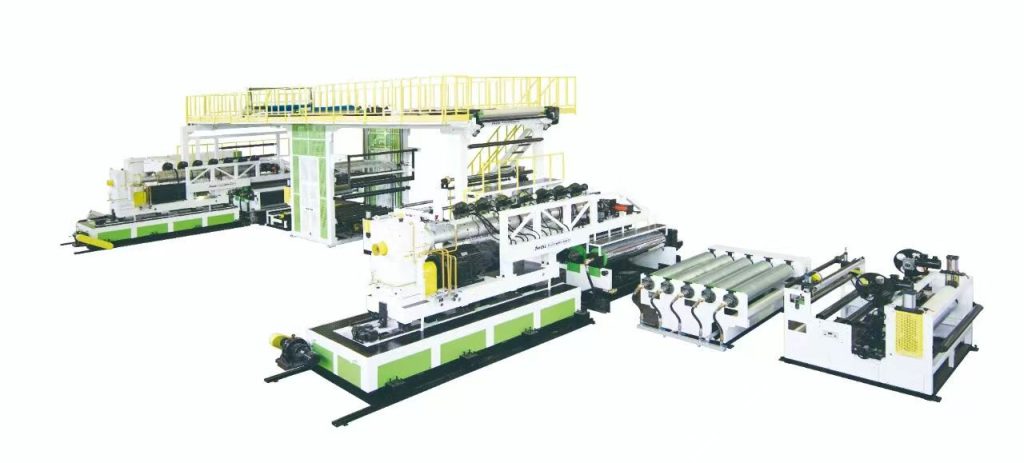

Extruder Configuration: 1-3 extruders (TPU/TPETPR layer + optional foam + optional tie layer); Screw Diameter (TPU): 65 mm, 75 mm, 90 mm; Output Capacity: 100 – 300 kg/h (TPU/TPETPR layer); Composite Width: 1,200 – 2,000 mm
Extruder Configuration: /; Number of Extruders: 2 (TPU + ABS) / 3 (TPU + Tie-Layer + ABS); TPU Extruder (Surface): 75 mm, 30:1 L/D / 75 mm, 30:1 L/D; Tie-Layer Extruder: — / 45 mm, 28:1 L/D
Extruder Type: Single-screw, vented, 33:1 L/D; Screw Diameter: 90 mm, 105 mm, 120 mm; Output Capacity: 100 – 350 kg/h; Plate Thickness Range: 2 – 15 mm
Extruder Type: Single-screw, vented, 30:1 L/D; Screw Diameter: 65 mm, 75 mm, 90 mm; Output Capacity: 50 – 300 kg/h; Film Thickness Range: 0.02 – 2.0 mm
Jwell Machinery Co., Ltd sets up in 1997 , we are large manufacturer of plastic extrusion machinery in China, our headoffice was located in Shanghai.
