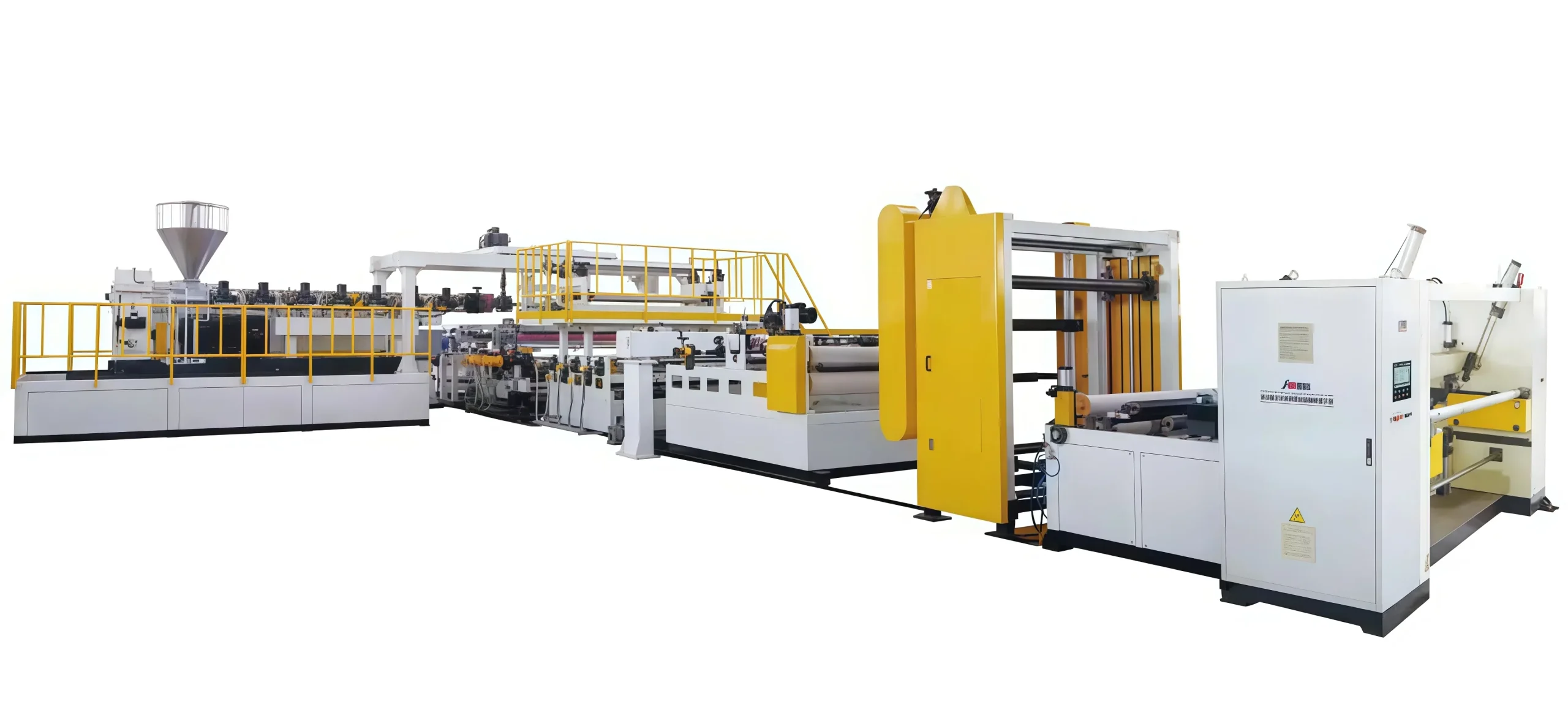

JWELL TPU Casting & Laminating Film Extrusion Line is designed for the efficient production of high-quality TPU composite films and laminated fabrics. The line integrates precision TPU extrusion, casting, online lamination, cooling and automatic winding into a continuous one-step production process.
Featuring specialized screw design, precision T-die technology and temperature-controlled casting rollers, the line ensures stable extrusion, uniform film thickness and consistent lamination quality.
With flexible single-sided and double-sided lamination configurations, JWELL provides customized solutions for waterproof textiles, footwear materials, inflatable products, sports equipment and other functional composite applications.
Explore more JWELL extrusion solutions,
including our
TPU PPF Film Production Line
for advanced TPU film manufacturing applications.
🔗 One-Step Casting & Lamination
Integrated extrusion and online lamination.
🔄 Single & Double-Sided Lamination
Flexible lamination for various fabrics.
⚙️ Specialized TPU Extrusion
Stable plasticization and uniform melt flow.
📏 Precision Thickness Control
Consistent film thickness and quality.
🧩 Versatile Composite Processing
Customized TPU film and fabric structures.
🌀 Automatic Tension & Winding
Stable tension and uniform roll formation.
The TPU material drying and feeding system ensures efficient moisture removal and uniform raw material feeding. Precise material preparation helps improve extrusion stability, reduce moisture-related defects and maintain consistent TPU film quality during continuous production.

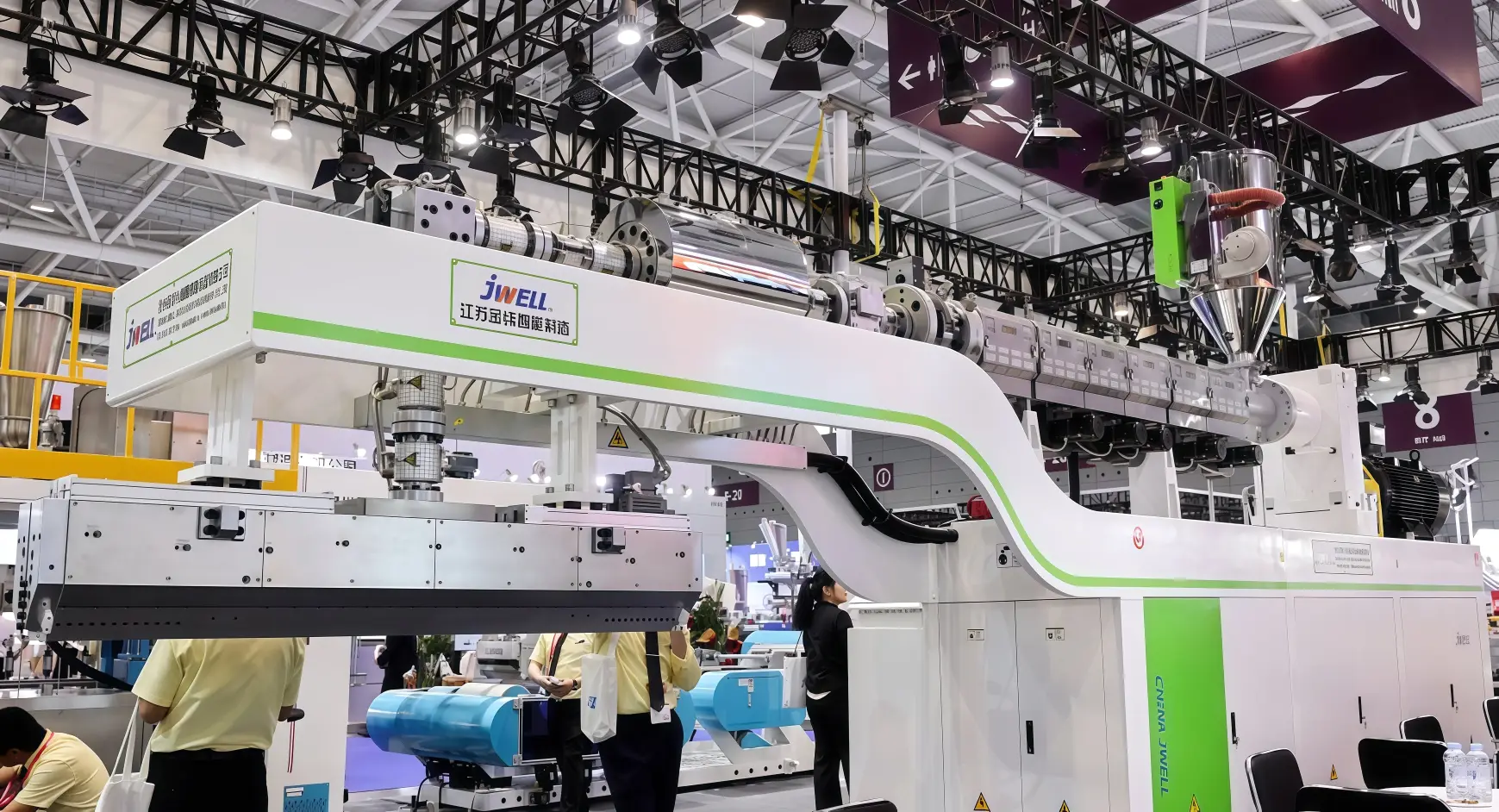

The TPU extruder features a specially designed screw and barrel configuration to achieve uniform plasticization, stable melt conveying and consistent extrusion output. Optimized processing conditions help ensure reliable TPU melt quality for high-performance casting and composite film production.

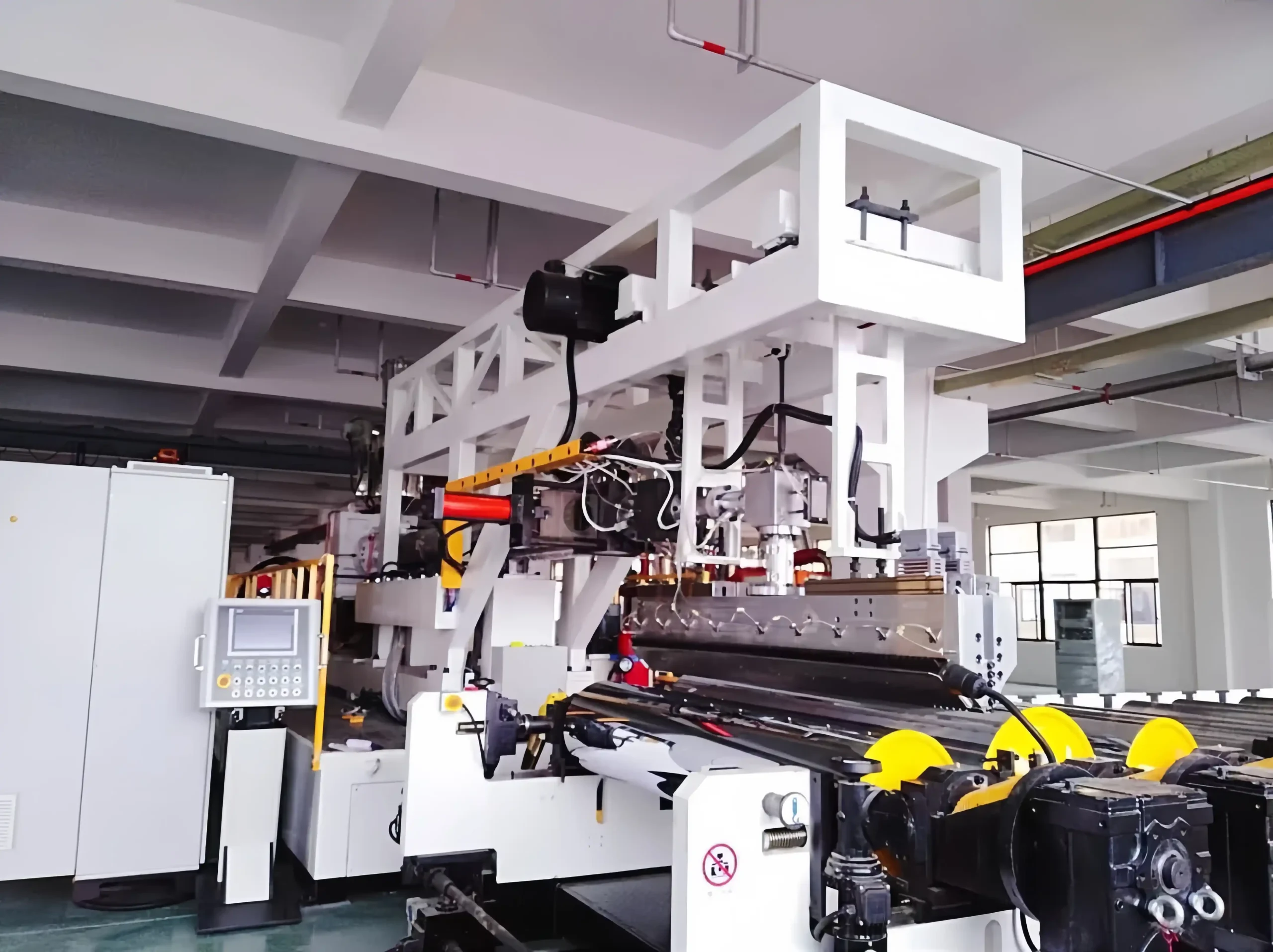

The precision flat T-die is designed for uniform melt distribution across the entire working width. Its optimized flow channels help control film thickness, improve extrusion consistency and produce smooth TPU films for subsequent casting and lamination processes.

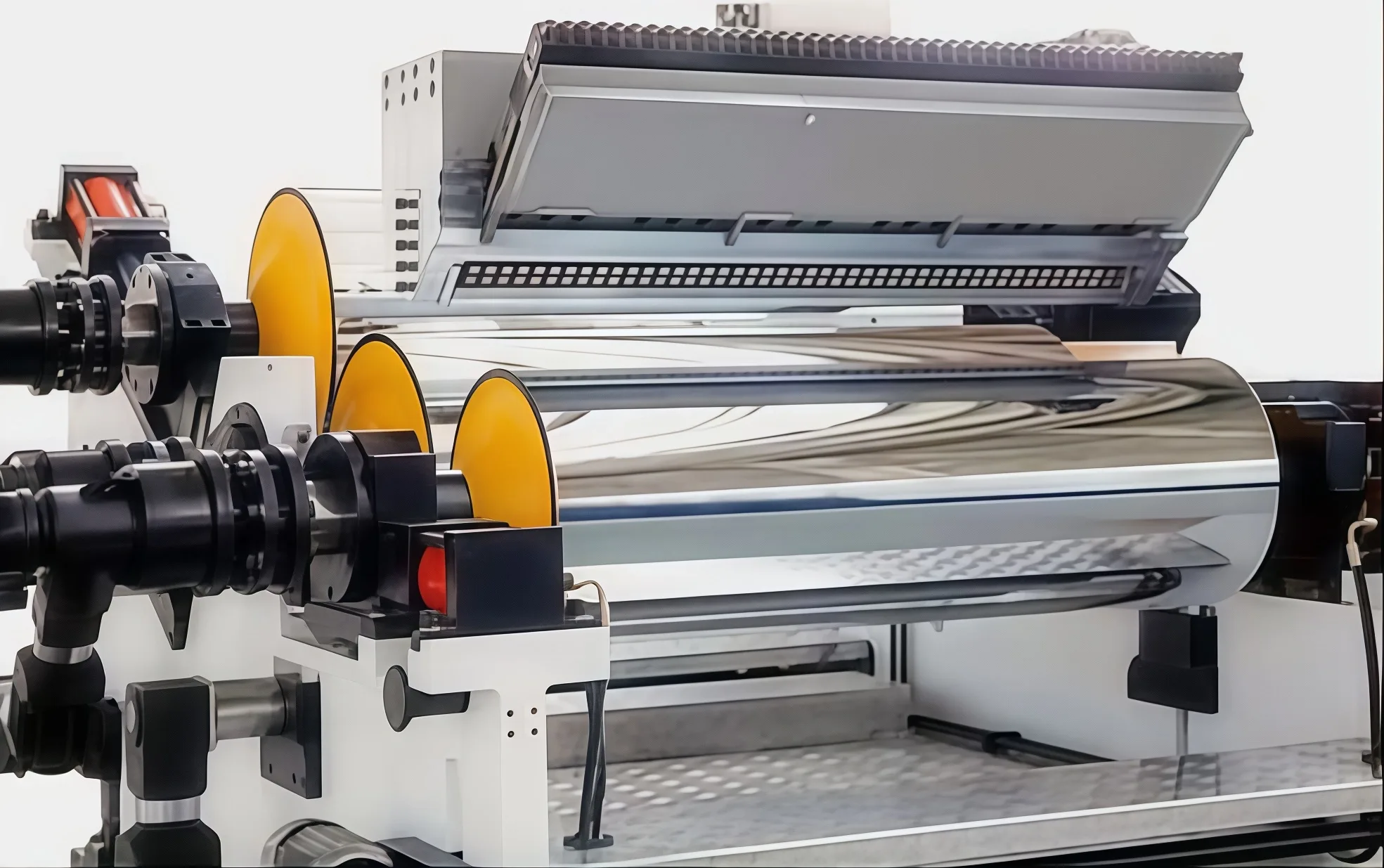

The casting and cooling roller system provides controlled film forming and temperature regulation. Precision roller surfaces and stable cooling conditions help improve TPU film thickness uniformity, surface quality and dimensional stability.
The online lamination system integrates freshly extruded TPU film with compatible textile fabrics or other substrates in a continuous production process. Single-sided and double-sided lamination configurations are available to manufacture different TPU composite film structures with consistent bonding quality.
The web guiding and tension control system maintains accurate substrate alignment and stable material tension throughout the TPU film lamination process. It helps reduce wrinkles, material deviation and uneven stretching, improving composite film quality and production stability.

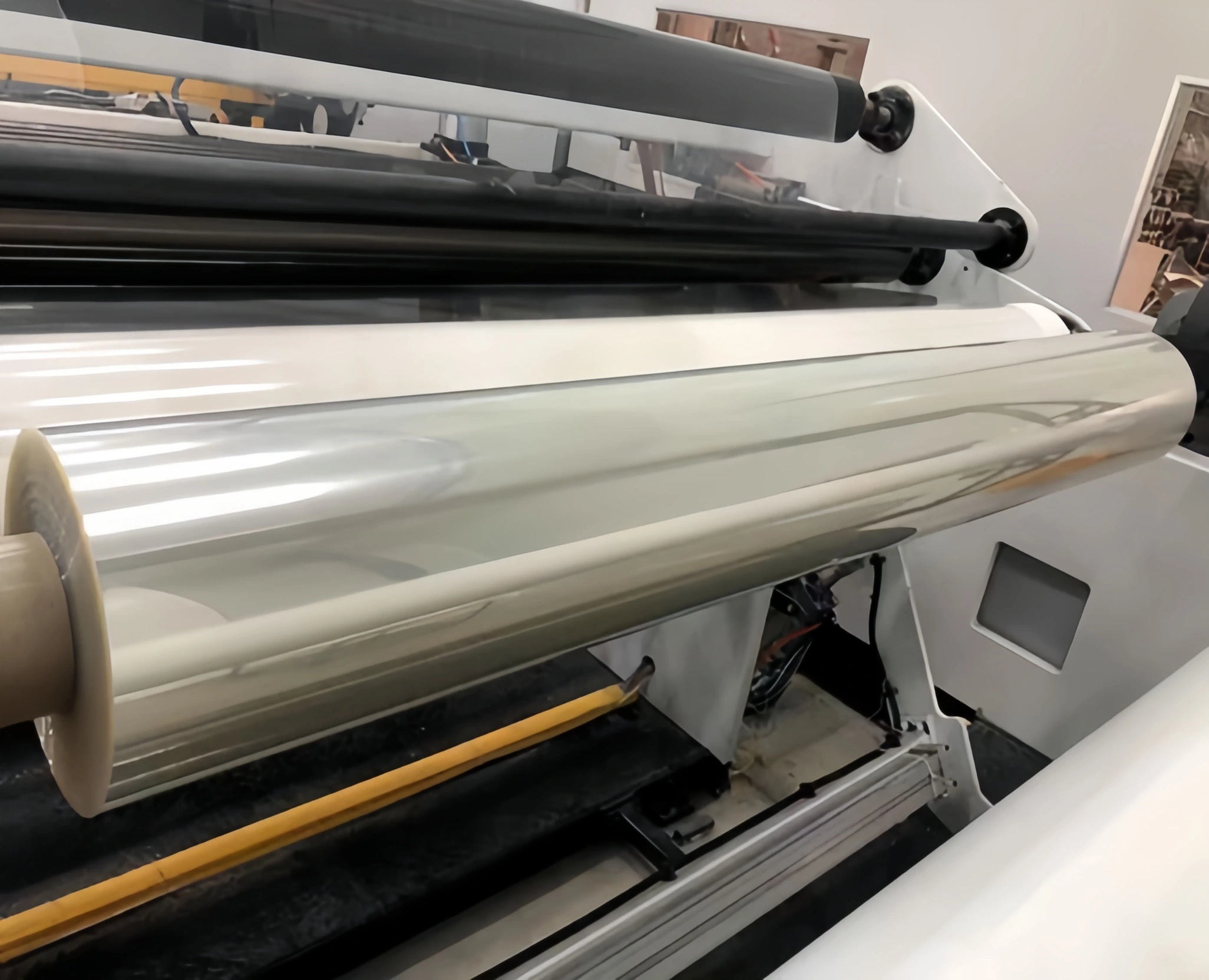

The automatic winding system collects finished TPU laminated films with controlled winding tension and uniform roll formation. Its integrated operation supports continuous production, reduces manual handling and improves the efficiency of TPU composite film manufacturing.
| Model | Product Width (mm) | Product Thickness (mm) | Capacity (kg/h) |
|---|---|---|---|
| JWS120/36 | 1,000–3,000 | 0.02–2.0 | 200–300 |
| JWS120+JWS75 | 1,000–3,000 | 0.02–2.0 | 250–350 |
| JWS130/36 | 1,000–3,000 | 0.02–2.0 | 300–400 |
| JWS150/36 | 1,000–3,000 | 0.02–2.0 | 400–500 |
Note: The specifications listed above are provided for reference. Actual machine configurations, technical parameters and production capacity may vary depending on material properties, product requirements and customized equipment designs. JWELL reserves the right to update technical specifications as part of continuous product improvement.
TPU laminated fabrics are widely used in waterproof clothing, outdoor jackets and functional textiles. TPU composite film provides flexibility, water resistance and reliable bonding with compatible textile substrates.
TPU composite films are suitable for footwear uppers, shoe reinforcement materials and sports shoe components. Their flexibility, abrasion resistance and versatile surface finishes support different footwear manufacturing requirements.
TPU laminated fabrics are used in inflatable mattresses, air cushions, inflatable boats and other flexible products requiring airtightness, flexibility and durable composite structures.
TPU composite materials are suitable for waterproof bags, outdoor equipment, protective covers and sports accessories, offering flexible structures and resistance to demanding usage conditions.
A TPU Casting & Laminating Film Extrusion Line is an integrated production system designed to manufacture TPU composite films and laminated fabrics. It combines TPU resin extrusion, flat-die casting, cooling, online lamination and automatic winding into a continuous production process, reducing the need for separate offline lamination operations.
Industry Reference:
Learn more about thermoplastic polyurethane materials
and their applications through
the Polyurethane Manufacturers Association
.
TPU film extrusion produces standalone thermoplastic polyurethane films through melting, extrusion and casting. TPU film lamination further combines the extruded film with compatible fabrics or other substrates to create composite materials with additional functional properties. An integrated casting and lamination line combines these processes in one production workflow.
JWELL offers several TPU casting and laminating film extrusion configurations. Reference models include JWS120/36, JWS120+JWS75, JWS130/36 and JWS150/36. Product widths range from 1,000 to 3,000 mm, film thicknesses from 0.02 to 2.0 mm, and reference output capacities from 200 to 500 kg/h, depending on the selected model.
The line can be configured for approximately 0.05–0.30 mm film production and 0.50–2.00 mm sheet production.
TPU films can be laminated with compatible textile fabrics and other suitable substrates to produce functional composite materials. Typical substrate options include selected polyester and nylon fabrics. Material compatibility, bonding conditions and processing parameters should be evaluated through application testing.
Consistent TPU film thickness is achieved through coordinated control of the extrusion system, precision flat T-die, melt distribution and casting roller conditions. Proper process adjustment helps maintain uniform film formation and stable product dimensions across the working width.
TPU composite film production lines can manufacture materials for waterproof clothing, functional textiles, footwear, inflatable products, air mattresses, waterproof bags and outdoor sports equipment. The final applications depend on TPU formulation, film thickness, substrate selection and lamination structure.
Yes. JWELL provides customized TPU film extrusion and lamination solutions according to production capacity, working width, film thickness, substrate type and lamination requirements. Equipment configurations can include specialized extrusion systems, precision casting rollers, online lamination units, tension control and automatic winding systems.
Jwell WPC Flooring Production Line produces lightweight, durable wood-plastic composite flooring with a foamed core, precision calendering, embossing, UV coating and automated profiling.
Jwell SPC Flooring Production Line delivers turnkey production from mixing and extrusion to calendering, UV coating, profiling, lamination and packaging.
TPU Paint Protection Film (PPF) extrusion line for automotive protective film production, featuring TPU drying, precision extrusion, casting, thickness control and winding.
With decades of polymer extrusion experience, JWELL provides advanced TPU film casting and lamination solutions designed for stable production and consistent product quality.
In-house manufacturing of screws, barrels, extrusion dies and key components ensures reliable equipment performance, precise processing and consistent production standards.
JWELL provides customized production lines with flexible working widths, film thicknesses, single- or double-sided lamination and automated winding systems to meet diverse customer requirements.
