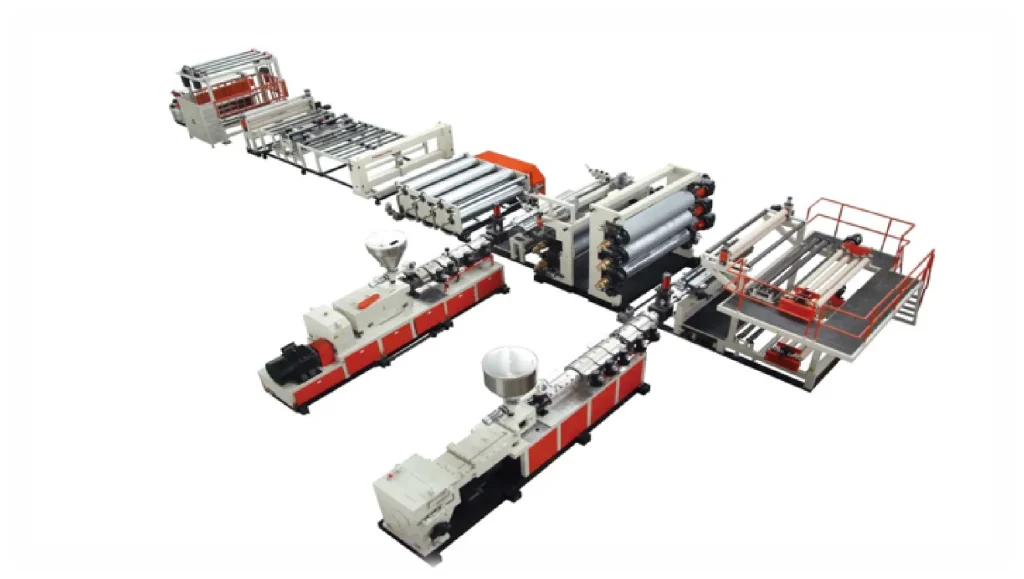

EVA Lamination Composite Production Line
Applicable Material: EVA copolymer (VA content 14-28%), EVA + LDPE blends, EVA + carbon black; Sheet Width: 2,000 – 4,000 mm; Sheet Thickness: 1.0 – 3.0 mm; Production Capacity: 300 – 600 kg/h
Applicable Material: EVA copolymer (VA content 14-28%), EVA + LDPE blends, EVA + carbon black; Sheet Width: 2,000 – 4,000 mm; Sheet Thickness: 1.0 – 3.0 mm; Production Capacity: 300 – 600 kg/h
参数组: 参数 / 规格值; Model Options: JWELL-TPU-LAM-150 / 150 kg/h max output (polyester TPU); : JWELL-TPU-LAM-250 / 250 kg/h max output; : JWELL-TPU-LAM-400 / 400 kg/h max output
Extruder Configuration: 1-3 extruders (TPU/TPETPR layer + optional foam + optional tie layer); Screw Diameter (TPU): 65 mm, 75 mm, 90 mm; Output Capacity: 100 – 300 kg/h (TPU/TPETPR layer); Composite Width: 1,200 – 2,000 mm
Extruder Configuration: /; Number of Extruders: 2 (TPU + ABS) / 3 (TPU + Tie-Layer + ABS); TPU Extruder (Surface): 75 mm, 30:1 L/D / 75 mm, 30:1 L/D; Tie-Layer Extruder: — / 45 mm, 28:1 L/D
Extruder Type: Single-screw, vented, 33:1 L/D; Screw Diameter: 90 mm, 105 mm, 120 mm; Output Capacity: 100 – 350 kg/h; Plate Thickness Range: 2 – 15 mm
