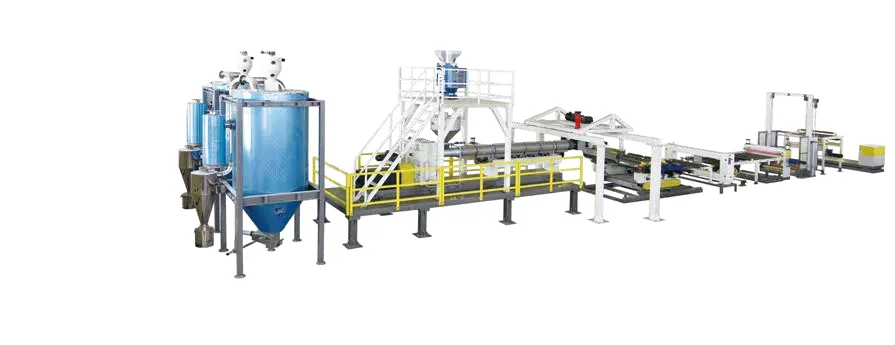

JWELL PMMA Sheet Extrusion Line is engineered for manufacturing high-quality acrylic sheets with excellent optical clarity, smooth surfaces, and consistent thickness.
The production line combines optimized screw technology, precision T-die forming, mirror-finish three-roll calendering, and automated downstream processing. It supports the production of transparent and decorative PMMA sheets for lighting, signage, display, and architectural applications.
Precision Acrylic Sheet Production with Intelligent Automation
The extrusion system is specially designed for PMMA processing, ensuring uniform plasticization, stable melt pressure, and efficient material processing.
Key Advantages:
Optimized screw design for stable extrusion
Excellent plasticizing performance
Consistent melt quality for high-quality acrylic sheets
JWELL independently develops and manufactures three core extrusion components, including screw and barrel systems, precision T-dies, and high-performance rollers.
These technologies provide reliable material processing, uniform melt distribution, and precise sheet forming.
Key Advantages:
Screw and Barrel: Efficient plasticization and stable extrusion
Precision T-Die: Uniform melt distribution and consistent sheet thickness
High-Precision Roller: Excellent surface finish and sheet flatness
The precision three-roll calendering system features highly polished rollers and controlled cooling to produce acrylic sheets with smooth surfaces, excellent flatness, and consistent thickness.
Key Advantages:
Mirror-polished rollers for smooth, high-gloss surfaces
Precise temperature and roller gap control
Improved sheet flatness and surface appearance
JWELL’s intelligent thickness control system integrates automatic T-die adjustment, roller gap control, and online thickness measurement to improve sheet thickness consistency.
Key Advantages:
Automatic T-Die: Precise die lip adjustment through automatic control
Roller Gap Automation: Accurate roller gap adjustment
Online Thickness Gauge: Real-time thickness monitoring and feedback
Online thickness measurement data can be transmitted to the control system, which adjusts individual automatic die bolts to optimize the die opening and improve thickness uniformity.
The automatic protective film lamination system applies protective film to PMMA sheet surfaces during production, helping prevent scratches and surface damage during subsequent processing, handling, and transportation.
Key Advantages:
Optional single-sided or double-sided protective film application
Helps maintain acrylic sheet surface quality
Reduces manual handling and improves production efficiency
The automatic material feeding and drying system integrates controlled material drying, automatic conveying, and optional gravimetric blending to maintain consistent raw material quality and stable PMMA extrusion.
Key Advantages:
Controlled drying to reduce moisture-related processing defects
Automatic material conveying for continuous production
Accurate weighing and blending for consistent material feeding
The automatic cutting and stacking system integrates sheet trimming, length cutting, and finished sheet collection to improve production efficiency and reduce manual operation.
Key Advantages:
Precision cutting for consistent sheet dimensions
Automatic sheet collection and orderly stacking
Reduced labor requirements and improved handling efficiency
Main Technical Parameters of PMMA Sheet Extrusion Line
The JWELL PMMA Sheet Extrusion Line is designed for producing high-quality acrylic sheets for advertising, signage, display and decorative applications. Different extrusion configurations are available to meet various requirements for sheet width, thickness and production capacity.
| Parameter | JW-150/90-2700 | JW130-1500 |
|---|---|---|
| Suitable Material | PMMA / GPPS | PMMA / GPPS |
| Sheet Width (mm) | 2500 | 1300 |
| Sheet Thickness (mm) | 2–15 | 1–10 |
| Extruder Model | JWS150/38; 90/35 | JWS130/38; 130/35 |
| Max. Extrusion Capacity (kg/h) | 700 | 600–800 |
Note:
The above specifications are for reference only and are subject to change without prior notice. Actual production capacity and equipment configurations may vary depending on material properties, sheet dimensions and processing requirements.
PMMA sheets are widely used in advertising displays, illuminated lightboxes, signage panels, and promotional boards. Their excellent transparency, smooth surface, and attractive appearance make them ideal for indoor and outdoor advertising applications.
With good optical clarity and easy fabrication, PMMA sheets are suitable for retail display stands, exhibition panels, product showcases, and transparent display cabinets. They help create attractive product presentations for shopping malls, exhibitions, and commercial spaces.
PMMA sheets are used in interior decoration, furniture panels, decorative partitions, and wall cladding. Available in various colors, finishes, and thicknesses, they offer designers flexible options for modern commercial and residential interiors.
PMMA sheets can be easily cut, drilled, polished, and thermoformed into various customized products. Typical applications include acrylic boxes, organizers, protective covers, display holders, and customized plastic components.
JWELL PMMA Sheet Extrusion Line is designed for processing PMMA (Acrylic) and GPPS materials. The equipment configuration can be selected according to material properties and production requirements.
PMMA sheets produced by JWELL extrusion lines are widely used for advertising lightboxes, signage panels, retail displays, exhibition boards, decorative panels, acrylic furniture, and various customized acrylic products.
According to the available configurations, the JW-150/90-2700 model supports sheet widths up to 2500 mm and thicknesses from 2–15 mm. The JW130-1500 model supports widths up to 1300 mm and thicknesses from 1–10 mm.
The JW-150/90-2700 model has a designed maximum extrusion capacity of 700 kg/h, while the JW130-1500 model offers a capacity range of 600–800 kg/h. Actual output depends on material properties, sheet thickness, width, and processing conditions.
The main components include the extrusion system, screw and barrel, precision T-die, three-roll calendering system, cooling section, protective film lamination unit, and downstream cutting and stacking equipment. Configurations can be customized according to production requirements.
Yes. With suitable raw material formulations and processing configurations, the production line can manufacture different PMMA sheet colors and surface finishes to meet advertising, display, and decorative application requirements.
Yes. JWELL provides customized extrusion line solutions based on sheet width, thickness, material formulation, production capacity, and downstream processing requirements.
JWELL provides technical support for equipment installation, commissioning, operator training, and after-sales service to help customers establish stable and efficient PMMA sheet production.
