With increasing demand for sustainable packaging and circular economy solutions, advanced PET sheet extrusion line manufacture technologies now support high percentages of recycled material while maintaining performance and compliance with global standards.
It’s one of the most advanced production lines with matured technology and stability in China. Compared with other same kind equipment, it’s over 30% higher in overall efficiency. This line is suitable for APET, PETG, CPET as well.
The PET Sheet Extrusion Line is part of JWELL’s complete extrusion portfolio. Customers evaluating this PET Sheet Extrusion Line also frequently request our rPET Sheet Extrusion Line — Factory Acceptance Test and , which share the same proven screw, die and control platforms. For layout drawings, pricing and lead times, contact JWELL Machinery directly.
🌀 Twin-Screw Vacuum Degassing — ≤5 mbar dual-vent system
⚡ 500–1,200 kg/h Output — model-dependent, scale as you grow
🎯 Thickness Tolerance ±1.5% — servo-adjusted roll gap 0.01mm precision
🔄 Multi-Material Capability — APET, rPET, PETG, PLA on one line
🔧 Siemens PLC + WEG Motors + ABB Inverters — globally sourced components
✅ CE Certified — compliant with EU machinery directives
♻️ Up to 50% rPET Content — sustainability-ready without quality loss
🌍 400+ Global Installations since 2005 — proven track record

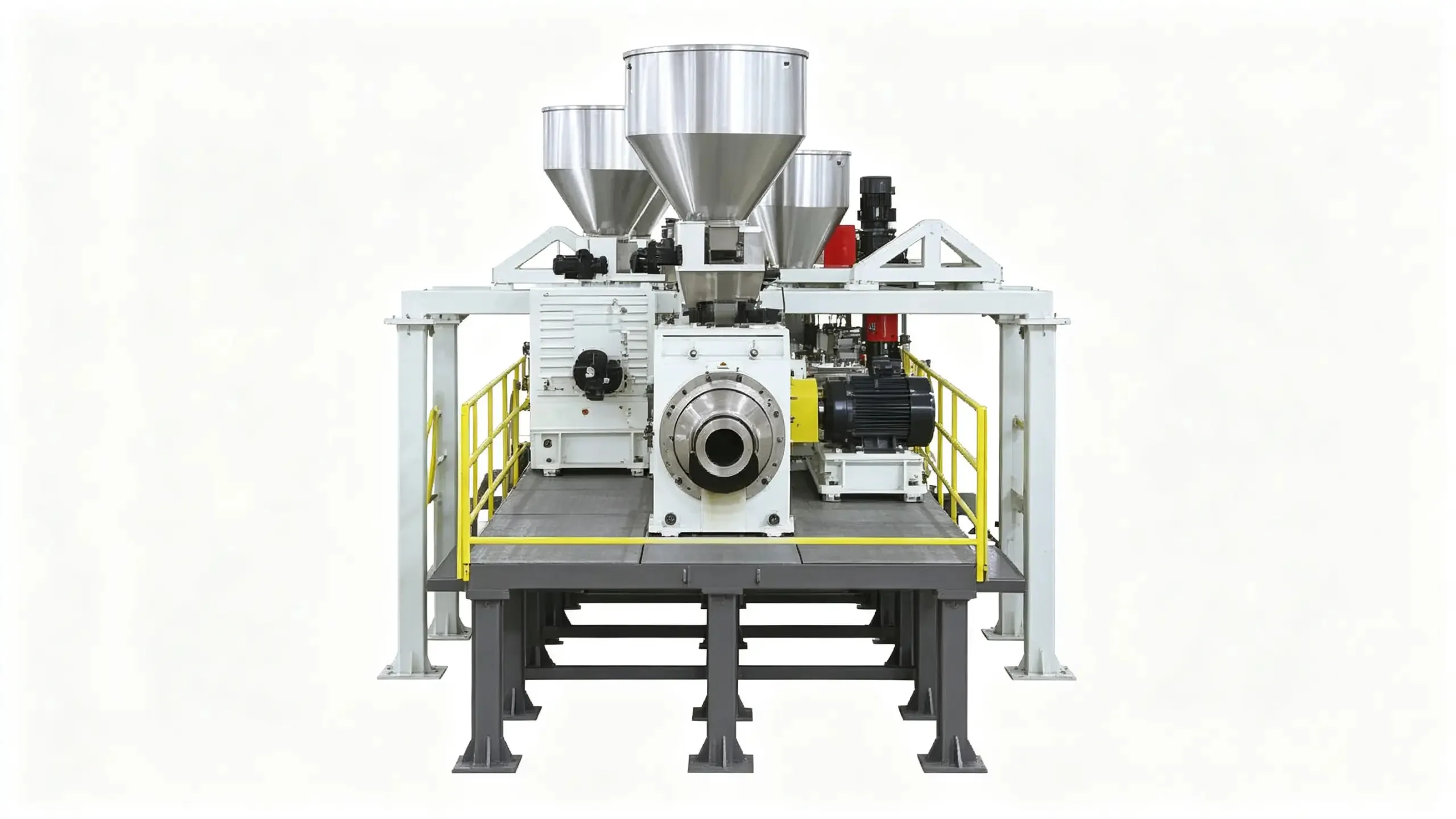

The screw and barrel system is the melt-preparation core of the PET sheet line, controlling throughput, melt homogeneity and intrinsic-viscosity stability for downstream calendering.
The T-Die is the sheet-forming heart of the line, distributing melt across the full width with precision thermal uniformity and online-adjustable lips for closed-loop gauge correction.

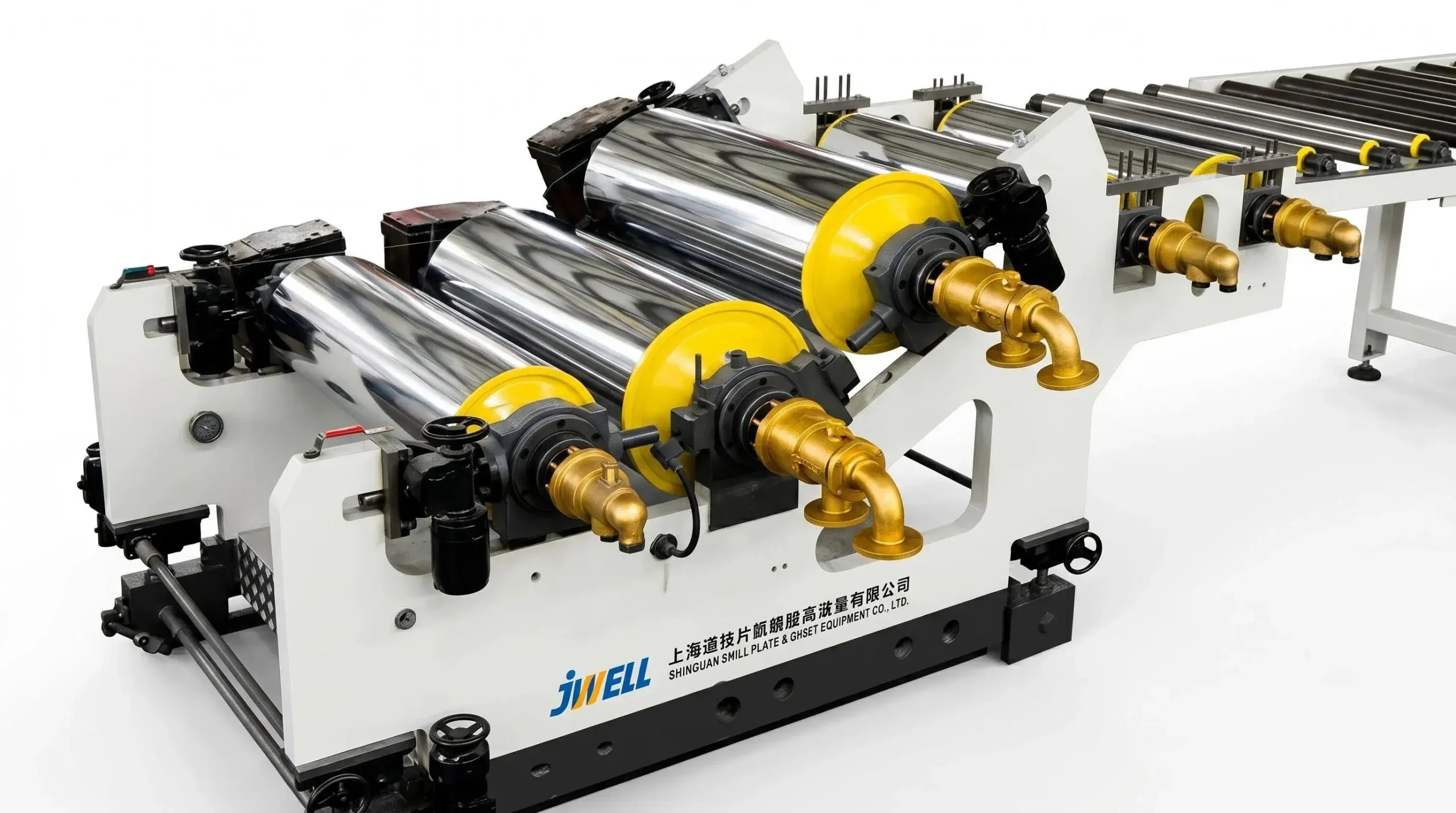

The J-type three-roll polishing calender is a sheet-finishing unit that defines final surface quality, gauge uniformity and optical clarity through precision roll-gap and roll-temperature control.
The online thickness gauge is a non-contact measurement system that provides real-time, full-width thickness data and closed-loop corrections back to the extruder screw and die-lip bolts.
Inline silicone oil coating is an in-line functional coating process that adds release, anti-static or barrier functionality to PET sheet for downstream thermoforming, lamination and electronics applications — without transferring the substrate off-line.
The 4-station winder is an uninterrupted reel-changeover system that ensures continuous winding at high line speeds, maintaining tension consistency and clean edges for downstream slitting and converting.
JWELL’s PLC/HMI integration ties every subsystem — extruder, dryer, die, calender, gauge, coater and winder — into one coordinated control layer for recipe management, traceability and remote diagnostics.
| Parameter | Specification |
| Available Models | JWPET-75, JWPET-92, JWPET-120 (screw diameter based) |
| Screw Diameter Options | 52mm / 65mm / 75mm / 92mm |
| Output Range (model dependent) | 500 – 1,200 kg/h |
| Parameter | Specification |
| Extruder Type | Co-rotating twin-screw, intermeshing |
| Screw Diameter (standard) | 75 mm |
| L/D Ratio | 36:1 |
| Degassing System | Dual-stage vacuum, ≤5 mbar |
| Barrel Heating Zones | 12 zones, independent PID control |
| Heating Type | Ceramic band heaters, mineral-insulated |
| Drive Motor | WEG 250 kW AC |
| Inverter | ABB ACS880 series |
| Screen Changer | Hydraulic, continuous operation |
| Parameter | Specification |
| Sheet Thickness Range | 0.15 – 1.5 mm |
| Sheet Width | 600 – 1,200 mm |
| Thickness Tolerance | ±1.5% |
| Materials | APET, rPET, PETG, PLA |
| Max rPET Content | Up to 50% |
| Parameter | Specification |
| Configuration | 3-roll horizontal |
| Roll Diameter | 400 mm each |
| Roll Temperature Control | Pressurized water, closed-loop |
| Temperature Uniformity | ±0.5°C across roll face |
| Roll Gap Adjustment | Servo-driven, 0.01 mm precision |
| Parameter | Specification |
| Max Line Speed | 30 m/min |
| Total Installed Power | 320 – 550 kW (model dependent) |
| Control System | Siemens S7-1200 PLC + 12″ HMI |
| Recipe Storage | 20 preset slots |
| Parameter | Specification |
| Inline Silicon Coating | Single-side application |
| Edge Trim Reclaim | Gravimetric, closed-loop, 100% reuse |
| Gravimetric Blender | ±0.5% batch accuracy |
| Crystallizer + Dryer (rPET) | IR preheating + fluidized bed, -50°C dew point |
| Parameter | Specification |
| Cooling Water | 20-30 m³/h at 15-25°C |
| Compressed Air | 0.6-0.8 MPa |
| Line Dimensions (L×W×H, approx.) | 28m × 6m × 5.5m |
| Certifications | CE, ISO 9001 |
APET and CPET sheet is the workhorse of bakery, ready-meal, fresh-produce and frozen-food packaging — combining glass-like clarity with food-contact compliance.
APET (transparent, easy thermoforming); CPET (crystallized, ovenable, heat-resistant up to 220°C).
JWS150 single-screw + crystallizer + dryer (APET) or CJWS95 twin-screw dryer-free (CPET); J-type calender with chrome mirror rolls.
Bakery clamshells, ready-meal trays, fresh-produce punnets, frozen-food packaging, beverage bottle base cups.
Medical-grade PETG and APET sheet is a rigid thermoforming substrate that forms the tray and lidding structure of sterile-barrier packaging for medical devices and diagnostic consumables.
PETG (preferred — high toughness, deep-draw thermoforming); APET for less-demanding medical lidding.
Twin-screw dryer-free configuration; J-type calender with mirror rolls; Class 10000 (ISO 7) cleanroom-side handling; optional inline anti-static coating.
Surgical instrument trays, diagnostic device blister, pharmaceutical secondary packaging, IV-bag port covers.
Anti-static and dimensionally-stable APET and PETG sheet protects sensitive electronic components during shipping and shelf life, replacing PVC in most regions.
APET or PETG with anti-static masterbatch (10⁹–10¹¹ Ω surface resistivity).
Inline double-sided silicone-oil coating for release; optional conductive coating; J-type calender with precise gauge control (±0.003 mm).
IC tray, PCB blister, consumer-electronics clamshells, display-protection film, label base film.
RPET sheet — made from post-consumer bottle flakes and edge trim — supports brand-owner recycled-content mandates and reduces virgin-PET demand while preserving food-contact compliance when properly processed.
RPET (post-consumer bottle flakes, edge trim, PCR-content 30%–100%).
Dehumidifying crystallizing dryer + twin-screw extruder with vacuum venting for IV stabilization; IV-loss control <0.05 dL/g; optical-sorting pre-checked flakes.
Private-label food trays, beverage bottle base cups, sustainable blister clamshells, RPET-content cosmetic and personal-care packaging.

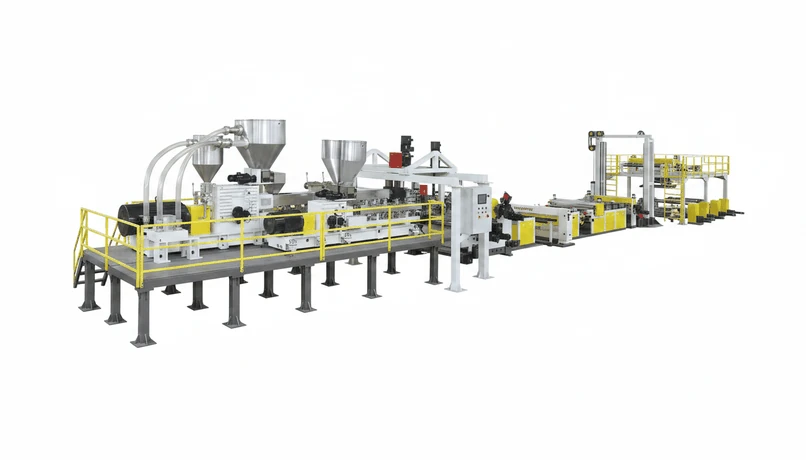

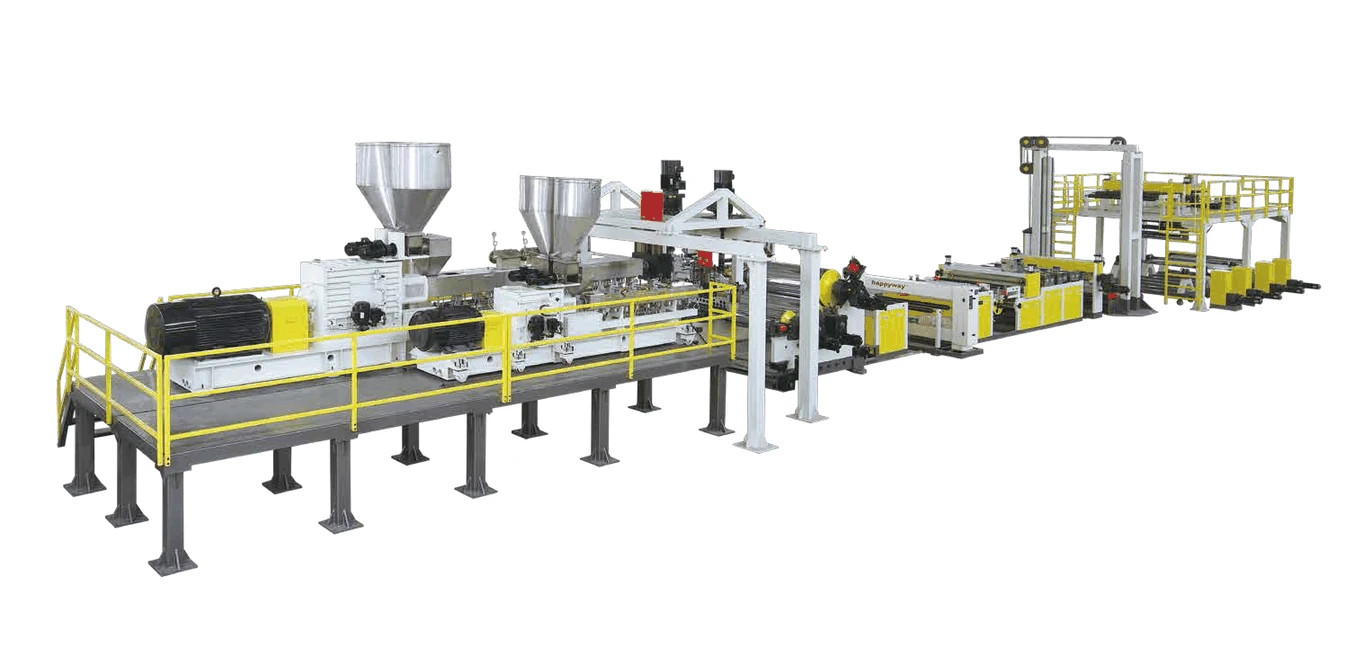

A PET sheet extrusion line is an integrated polymer processing system that converts PET resin into continuous flat sheet through seven coordinated stages — dehumidifying crystallization drying, twin or single-screw extrusion, T-Die forming, three-roll polishing, online thickness gauging, optional silicone oil coating and four-station winding — producing APET, CPET, RPET or PETG sheet for downstream thermoforming, blister packaging and lamination.
APET (Amorphous PET) is transparent and glossy, used for food packaging and blister trays. CPET (Crystallized PET) is heat-resistant and ovenable, used for ready-meal trays. RPET (Recycled PET) is made from post-consumer bottle flakes, supporting sustainable packaging. PETG (Glycol-modified PET) has higher toughness and easier thermoforming, used for medical devices and electronics.
JWELL’s CJWS95 twin-screw extruder reaches a measured output of 1500 kg/h on PET sheet; the JWS150 single-screw configuration reaches 1700 kg/h. The twin-screw configuration can run without pre-crystallization drying, saving up to 30% energy versus single-screw + crystallizer + dryer setups.
The integrated online thickness gauge — infrared/laser or beta-ray — maintains thickness tolerance within ±0.003 mm through closed-loop feedback to the extruder screw speed and die-lip bolts. The HMI records thickness curves for quality traceability and process optimization.
Inline silicone oil coating is typically specified for release film, medical blister sheet, label base film, anti-adhesive protective film and electronic packaging film. JWELL’s coating unit supports both single-sided and double-sided application with gravure or comma-bar heads, hot-air drying and optional CCD inspection.
JWELL PET sheet extrusion lines comply with CE and UL electrical safety standards. The line is suitable for producing food-contact sheet meeting FDA 21 CFR 177.1630 (US) and EU Regulation 10/2011 (EU) when food-grade raw materials and additives are used. Critical components are sourced from Siemens, ABB, Schneider, NDC and Scantech.
JWELL operates service centers and subsidiaries across China, Southeast Asia, India, Turkey and Latin America. Each PET line undergoes a Factory Acceptance Test (FAT) at the Suzhou facility before shipment, with on-site commissioning, operator training and a 12-month warranty supported by 48-hour spare-parts dispatch.
A standard single-screw PET sheet line typically ships within 90-120 days from order confirmation; a twin-screw or multilayer co-extrusion configuration typically ships within 120-150 days. Engineering review and customized widths, multilayer structures or specialty coating modules may extend the lead time.
Extruder Type: Conical twin-screw, vented; Screw Material: 38CrMoAlA, nitrided, bimetallic optional; Screw Structure: Conical twin, designed for PVC + wood flour + CaCO₃ + foaming agent; L/D Ratio: Optimized for controlled foaming zone
Screw Diameter: Φ 80 mm / Φ 92 mm / Φ 110 mm / Φ 180 mm; Output (24h, SPC): 6-8 T / 12-18 T / 25-32 T / 70-100 T; Line Speed at 4 mm: 0.4-0.6 m/min / 0.8-1.3 m/min / 1.8-2.4 m/min / 5-9 m/min; Screw Material: 38CrMoAlA, nitrided, bimetallic optional / ← Same / ← Same / ← Same
Applicable Material: EVA copolymer (VA content 14-28%), EVA + LDPE blends, EVA + carbon black; Sheet Width: 2,000 – 4,000 mm; Sheet Thickness: 1.0 – 3.0 mm; Production Capacity: 300 – 600 kg/h
🏭
Jwell has manufactured PET sheet extrusion equipment since 2005, accumulating field data from over 400 installed PET lines worldwide. Each new machine generation incorporates refinements validated across hundreds of real production environments — not just lab prototypes.
🔬
Our Changzhou facility operates a full production-scale PET line for customer trials. Bring your raw materials and target specifications — we run your recipe before you commit. The line delivered to your factory is a proven configuration, eliminating startup risk.
🌍
Factory-trained Jwell engineers based in Brazil, Spain, Mexico, and Shanghai travel to customer sites for installation and operator training. Remote diagnostic support via WeChat/WhatsApp responds within 2 hours. Critical spares ship from Shanghai within 48 hours.
