PP Honeycomb Board Line

Name: PP Honeycomb Board Line
Brand: JWELL
SKU: pp-honeycomb-board-line

Single Screw Extruder | Vacuum Thermoforming Drum | 200-500 kg/h | 1200-2500 mm | 2-20 mm | 200-800 GSM Core

Get Quote & Line Configuration

Discuss Your Application with an Engineer

See the PP Honeycomb Board Line in Action

Factory Acceptance Test — Jwell Manufacturing Facility

Complete production demonstration during FAT at Jwell’s manufacturing plant. Watch the full honeycomb board extrusion process from raw PP material through finished lightweight structural panel.

PP Honeycomb Board Line: Related JWELL Extrusion Lines

The PP Honeycomb Board Line is part of JWELL’s complete extrusion portfolio. Customers evaluating this PP Honeycomb Board Line also frequently request our PP Hollow Grid Sheet Line | Jwell Machinery and PP Thick Plate Extrusion Line | 3-30mm | 500-800kg/h | Jwell Machinery, which share the same proven screw, die and control platforms. For layout drawings, pricing and lead times, contact JWELL Machinery directly.

Key Features

#	Item	Key Point
1	🌀 97% Cell Fill Rate	proprietary rotary vacuum thermoforming drum technology
2	⚡ Adhesive-Free Thermal Fusion Bonding	100% recyclable mono-material PP panel
3	🎯 Triple-Extruder Architecture	independent core + dual face sheet extrusion
4	🔄 200-500 kg/h Output	industry-leading honeycomb board production capacity
5	🔧 200-800 GSM Core Density	unmatched strength-to-weight ratio in thermoplastic panels
6	✅ Interchangeable Cell Geometry	6/8/10 mm hexagon, circular cell options
7	♻️ Full Line Integration	extrusion → vacuum forming → bonding → annealing → corona → coating → cutting
8	🌍 Zero Water Absorption	sealed hexagonal cell structure, <0.1% by volume

Proprietary Rotary Vacuum Thermoforming Drum — 97% Honeycomb Cell Fill Rate

The heart of Jwell’s PP honeycomb board extrusion line is the proprietary rotary vacuum thermoforming drum — a precision-engineered cylinder that continuously forms the hexagonal honeycomb core structure from extruded PP melt web. Unlike reciprocating flat-bed vacuum forming systems that suffer from cyclic heating-cooling variation and cell quality inconsistency between press cycles, the rotary drum design provides continuous production with inherently higher output (30-50% more linear speed) and uniform cell geometry across every production minute.

The drum maintains surface temperature within ±1.5°C across its entire circumference through a multi-zone internal heating system, eliminating the temperature variation that causes cell wall thickness inconsistency. Precisely machined cavity geometry and vacuum distribution channels ensure uniform cell wall thickness of 0.15-0.30 mm throughout the honeycomb core. The drum achieves a cell fill rate exceeding 97% — meaning fewer than 3% of cells have wall defects or incomplete formation — producing honeycomb core with predictable and consistent mechanical properties.

Interchangeable cavity inserts enable manufacturers to configure cell size (6 mm, 8 mm, or 10 mm hexagon side length), cell wall angle, and cell orientation (vertical, diagonal, or mixed) to optimize for compressive strength, shear strength, or thermal insulation performance across different application requirements. The drum is available in Φ800 mm and Φ1,000 mm diameters to match different output configurations.

配图建议: 真空成型鼓近景照片，展示蜂窝结构成型过程

Inline Thermal Fusion Bonding — No Adhesives, Full Panel Recyclability

Jwell’s inline thermal-fusion bonding technology eliminates the need for adhesive films, hot-melt glues, or PUR reactive adhesives when joining face sheets to the honeycomb core. The system applies precisely controlled thermal energy at the interface between the extruded face sheet and the honeycomb core, creating a homogeneous PP-to-PP molecular bond that achieves peel strength above 15 N/25mm — exceeding adhesive-bonded alternatives — without introducing foreign material layers.

This adhesive-free approach delivers three fundamental advantages:

Cost Reduction: Eliminates adhesive raw material costs, typically US$0.15-0.25 per square meter, and removes the need for adhesive application equipment, curing time, and solvent handling infrastructure.

Superior Bond Performance: The molecular-level PP-to-PP bond provides higher peel strength than adhesive interlayers and eliminates the failure mode of adhesive delamination under thermal cycling, moisture exposure, and mechanical fatigue — common failure modes in adhesive-bonded honeycomb panels used in automotive and outdoor applications.

Full Recyclability: Because the entire panel — core and both face sheets — is a single material (PP), the finished product can be ground, pelletized, and re-extruded as homogeneous PP feedstock. This 100% recyclability supports European ELV (End-of-Life Vehicle) directive compliance for automotive components and circular economy certification for packaging and furniture applications. The absence of adhesive residues means the recycled material quality equals virgin PP for most re-extrusion applications.

配图建议: 热熔粘合区域近景或粘合界面截面图

Three Extruders, One Integrated Process — Core + Dual Face Sheet Synchronization

The production of consistent honeycomb panels demands precise coordination between three independent extruders — one for the honeycomb core web and one each for the top and bottom face sheets. Even minor flow imbalances between core and face sheet extruders cause thickness variation, warpage, or bonding defects that render panels unacceptable for automotive and furniture applications.

Jwell’s master-slave PLC architecture (Siemens S7-1500) continuously monitors melt pressure at each extruder die head and adjusts screw RPM in closed-loop control with a scan time under 100 milliseconds. This real-time synchronization maintains melt output balance within ±0.5% across all three streams, ensuring that face sheet thickness at panel edges matches center thickness within ±0.03 mm — a critical quality parameter for edge-banding applications.

The triple-extruder configuration also enables functional material flexibility. The top face sheet, honeycomb core, and bottom face sheet can each use different PP compounds. For example: a textured FR-grade black face sheet on one side for durability, a smooth natural-grade face sheet on the reverse for gluing or laminating, and a standard PP core for cost optimization. Color changes are accomplished through masterbatch dosing at each extruder throat without cross-contamination between streams.

Main extruder specifications:

– Core Extruder: Φ90 mm / Φ120 mm screw, 30:1 L/D with PP barrier screw

– Face Sheet Extruders: Φ65 mm / Φ90 mm (2 units for top/bottom)

– Total Installed Power: 90-220 kW (combined for 3 extruders)

配图建议: 三台挤出机布局照片或产线俯视图

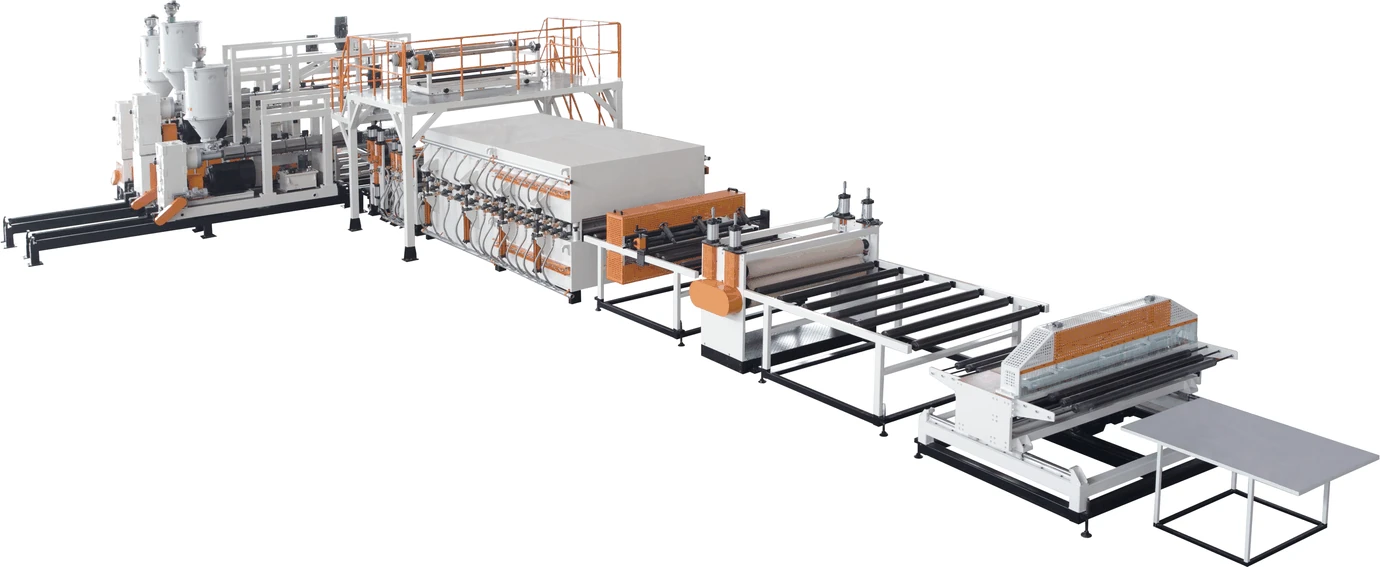

Single Pass Production — Extruder → Die → Vacuum Calibrator → Haul-Off → Annealing → Cooling → Corona → Coating → Cutter

Jwell’s PP honeycomb board line integrates the complete production sequence into a single continuous process, eliminating the offline handling, storage, and secondary processing steps required by multi-stage manufacturing approaches:

1. Single Screw Extrusion: PP melt generation with barrier screw delivering homogeneous melt at controlled temperature for consistent cell formation

2. Sheet Die: Precision flexible-lip die producing uniform melt web width for the honeycomb core

3. Vacuum Calibrator/Thermoforming Drum: Continuous honeycomb cell formation with 97% fill rate on the rotary drum

4. Haul-Off: Precision speed-controlled pulling maintaining web tension stability through the forming and bonding sections

5. Annealing Section: Controlled-temperature tunnel that relieves internal stress from the thermoforming and bonding processes, ensuring panel flatness retention

6. Cooling Section: Graduated multi-roller cooling conveyor reducing panel temperature at controlled rate to prevent warpage

7. Corona Treatment: Inline surface activation for improved coating adhesion and printability (optional)

8. Coating Station: Inline application of functional coatings — UV protection, anti-static, decorative, or primer for downstream lamination

9. Panel Cutter: Precision cross-cut saw cutting panels to customer-specified dimensions

This full integration means the line converts PP resin pellets into finished, dimensionally accurate honeycomb panels in one continuous pass, typically at haul-off speeds of 0.5-8.0 m/min depending on panel thickness and configuration.

配图建议: 产线全貌图，标注各工段位置

Technical Specifications

Extruder Configuration

Parameter	Specification
Extruder Type	Single-screw (3 independent: 1 core + 2 face sheet)
Core Extruder Screw Diameter	Φ90 mm / Φ120 mm
Face Sheet Extruder Screw Diameter	Φ65 mm / Φ90 mm (2 units)
L/D Ratio	30:1 with PP barrier screw
Screw Material	Nitrided steel, 950 HV surface hardness
Total Installed Power	90-220 kW (combined for 3 extruders)
Heating Type	Ceramic band heaters, multi-zone PID controlled

Panel Specifications

Parameter	Specification
Applicable Material	PP homopolymer, PP copolymer, PP + glass fiber (up to 20%)
Panel Width	1,200 mm, 1,600 mm, 2,000 mm, 2,500 mm
Panel Thickness	2 – 20 mm
Core Density	200 – 800 GSM
Core Density (volumetric)	60 – 120 kg/m³
Face Sheet Thickness	0.3 – 2.0 mm per side
Core Structure	Hexagonal honeycomb, circular honeycomb

Thermoforming Drum

Parameter	Specification
Drum Type	Rotary vacuum thermoforming, continuous operation
Drum Diameter	Φ800 mm / Φ1,000 mm
Cell Fill Rate	≥97%
Cell Size Options	6 mm, 8 mm, 10 mm (hexagon side length)
Cell Wall Thickness	0.15 – 0.30 mm
Drum Temperature Control	Multi-zone, ±1.5°C uniformity
Cavity Inserts	Interchangeable, 4-6 hour changeover

Bonding & Processing

Parameter	Specification
Bonding System	Inline hot-melt thermal fusion (no adhesive)
Peel Strength	>15 N/25mm
Annealing Section	4-6 m tunnel, 4-zone temperature control
Annealing Temperature	100-130°C (zone programmable)
Cooling Section	Multi-roller graduated cooling conveyor
Corona Treatment	Inline, 42-48 mN/m surface energy
Coating Station	Inline roller/spray, water-based/UV/solvent

Line Performance

Parameter	Specification
Production Capacity	200 – 500 kg/h
Haul-Off Speed	0.5 – 8.0 m/min
Control System	Siemens S7-1500 PLC with cell-formation monitoring
HMI	15-inch touchscreen, recipe storage
Process Parameters Logged	50+ at 10-second intervals

Certifications & Support

Parameter	Specification
Certifications	CE, ISO 9001
Available as	Complete line turnkey solution
After-Sales	Global engineer certification system, 48-hour spare parts dispatch
Warranty	1 year from commissioning or 18 months from dispatch

[L] RELATED PRODUCTS 相关产品

卡片	产品名称 / 链接 / 关系
1	PP Hollow Sheet Extrusion Line / /sheet-extrusion/pp-hollow-sheet-extrusion-line/ / 同类PP基材料，中空结构板材
2	PP Solid Plate Extrusion Line / /sheet-extrusion/pp-solid-plate-extrusion-line/ / 同类PP基材料，实心厚板
3	PP Hollow Grid Sheet Line / /sheet-extrusion/pp-hollow-grid-sheet-line/ / 同类PP基材料，网格中空结构

[N] INQUIRY FORM 询价表单

#	字段 / 类型 / 必填 / 说明
1	Name / text / ✅ / placeholder: “Your full name”
2	Email / email / ✅ / placeholder: “your@company.com”
3	Country / select / ✅ / 200+国家
4	Phone / tel / — / 含国际区号
5	Company / text / — / placeholder: “Your company name”
6	Application / select / ✅ / Automotive Interior / Packaging & Logistics / Construction Formwork / Signage & Display / Furniture / Multiple / Other
7	Target Material / select / ✅ / PP Homopolymer / PP Copolymer / PP + Glass Fiber / Not sure
8	Required Output (kg/h) / select / ✅ / <200 / 200-350 / 350-500 / >500 / Not sure
9	Panel Width (mm) / select / — / 1200 / 1600 / 2000 / 2500 / Not sure
10	Panel Thickness (mm) / select / — / 2-5 / 5-10 / 10-15 / 15-20 / Not sure
11	Cell Configuration / select / — / Hexagonal 6mm / Hexagonal 8mm / Hexagonal 10mm / Circular / Not sure
12	Surface Treatment / select / — / Corona + Coating / Corona Only / No Treatment / Not sure
13	Project Timeline / select / — / Immediate / 1-3 months / 3-6 months / 6-12 months / Information only
14	Message / textarea / — / placeholder: “Tell us about your production requirements, target application, and any special needs…”
—	CAPTCHA / — / ✅ / reCAPTCHA v3
—	Submit / submit / — / “Request Quote & Configuration”
